How do cylinder heads work

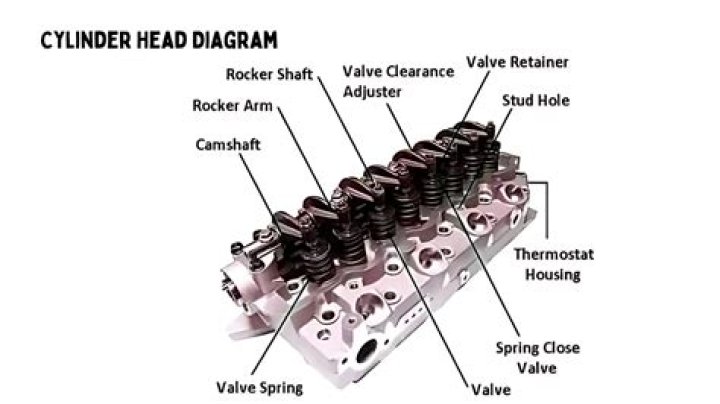

The cylinder head receives air from the intake manifold via its intake ports and down to the intake valves, where it goes all the way into the combustion chamber. … The rocker arms exert pressure on the valves to make them open or close. Pushrods get to move them as a response to the camshaft that you find in the block.

Do cylinder heads increase horsepower?

In addition to revising the camshaft events, one of the best methods of bolt-on power relates to the cylinder heads. … Improved throttle response, ‘fatter’ power and torque curves, and peak horsepower can all be generated through selecting the right cylinder heads for the engine combination.

What causes cylinder heads to fail?

Why Do Cylinder Heads Fail? The most common reason for cylinder head failure is overheating caused by, for example, coolant loss, head gasket failure or restricted flow of coolant. … Cylinder heads can also warp because of the tremendous pressure placed on them by extreme temperature changes.

What are the five function of the cylinder head?

Among the main cylinder head function in an engine are: Provide the mounting structure for various components such as the inlet and outlet exhaust valves and ducts, spark plugs, injectors, and (in some head designs), the camshaft. Contain the passages for coolant, oil, and combustion gases.

What makes up a cylinder head?

The cylinder head is located at the top of the engine block. Made from aluminum or iron, it seals the piston chambers, ensuring adequate pressure within them.

What is the advantage of aluminum heads?

Aluminum heads will dissipate heat faster. This allows for higher Compression Ratios with less risk of Detonation. The cooler head also delivers a cooler air/fuel mixture to the combustion chamber. Cooler air is denser and can make more power.

Can cylinder heads be too big?

“Super-sizing” may be a bit of an exaggeration, but cylinder head buyers have been known to opt for valves that are too large. That can result in cylinder heads that don’t fit an engine’s performance needs—or the actual engine itself!

Are valves in the cylinder head?

In the overhead camshaft (OHC) design, the cylinder head contains the valves, spark plugs and inlet/exhaust tracts just like the OHV engine, but the camshaft is now also contained within the cylinder head.

How many cylinder heads does a V8 have?

A V8 engine is an eight-cylinder piston engine in which the cylinders share a common crankshaft and are arranged in a V configuration.

What is the purpose of oil drains in a cylinder head?

The purpose of oil drain-back passages 20 is to permit lubricating oil which has been furnished to the valve gear (not shown) which is mounted on top of cylinder head 12 in the upper part of the engine to return to the crankcase (FIG. 2).

Article first time published on

Can cylinder head crack?

Under extreme conditions, a cylinder head can actually crack. A cracked cylinder head may yield similar symptoms to a blown head gasket or a cracked block, but is more expensive to fix than a blown head gasket. The solution is usually to buy a new cylinder head.

How do cylinder heads warp?

Warping of the cylinder head is caused by conditions similar to cracking, namely overheating. When a head is heated past normal operating temperatures, it expands past its limits. As it cools, the head often will not return to its original size or shape, instead settling into a more bent or distorted form.

How do engine heads crack?

The most common cause of cylinder head cracking is overheating. The rapid heating of the engine causes the head to expand and then contract as the engine cools. This puts a large amount of stress on the cylinder head, leading to cracks.

How many heads does a 4 cylinder engine have?

A four-stroke straight-four engine always has a cylinder on its power stroke, unlike engines with fewer cylinders where there is no power stroke occurring at certain times. Compared with a V4 engine or a flat-four engine, a straight-four engine only has one cylinder head, which reduces complexity and production cost.

What engine has both valves in the cylinder head?

Engine in which both the intake and exhaust valves are located in the engine block. It is also called a flat head engine. This construction is no longer use in automobile engines but functions in small gas engines.

What is another name for cylinder head?

Hyponym for Cylinder head: plate.

Which is better open or closed chamber heads?

Open and closed chamber cylinder heads differ in combustion chamber capacity. Although open chamber cylinders offer easier flow, the closed chamber cylinder is better for performance. Compression ratios are also affected by the size of the chambers.

What does cc mean in cylinder heads?

One of these checks is cc’ing the heads (cc = cubic centimeters). This is a process whereby we physically measure the volume of the combustion chamber. It’s important to do this because it ensures consistency among all the cylinders.

How much horsepower can a 355 make?

Using 30-Year-Old Recycled Parts, This 355 Kicks Out 467 Hp On Chump Change. There’s a sweet spot in the horsepower-per-dollar equation, and this 355 has its coordinates firmly locked onto that juicy territory.

How much more compression does an aluminum head have?

As mentioned previously, with a cast iron-headed motor on the street, somewhere in the range of 9.5:1 is the practical limit for compression; with aluminum, 10.5:1 or so is a pretty good maximum figure.

Why are cylinder heads made of Aluminium?

Aluminium has the advantages of light weight, high thermal conductivity, and ease of production to close tolerances. … But even if the engine block is cast iron, the cylinder head is normally made of aluminium as it allows a more rapid extraction of the combustion heat compared to grey iron.

Are aluminum heads better than iron heads?

Aluminum has less weight than iron, and is easier to repair as well. Many people prefer aluminum heads for their performance, and consider them inherently better than iron heads. However, no matter which material – iron, aluminum or cobalt – is used to build heads, their performance will almost be the same.

What does V12 mean in cars?

A V12 engine is a twelve-cylinder piston engine where two banks of six cylinders are arranged in a V configuration around a common crankshaft. V12 engines are more common than V10 engines. However, they are less common than V8 engines.

Are there any V4 engines?

The V4 engine is less common compared to straight-four engines. However, V4 engines have been used in automobiles, motorcycles, and other applications.

How much does a cylinder head cost?

It will cost at least $500, which includes labor and parts. It would cost $200 to $300 to replace the entire cylinder head. It takes about $90 to $100 an hour to do this job.

Why is there a cavity on the underside of the cylinder head?

The shape of the combustion chamber is formed by a recess in the bottom of the cylinder head. The shape of this recess determines how the fuel mixes with the air, and how that mixture burns. The objective is to achieve complete combustion of the fuel with an even spread of the flame across the chamber.

What opens and closes the ports in the cylinder head?

Valves or ports control the timing of air flow to the cylinder. … In four stroke engines, intake gas enters the cylinder through a port located in the cylinder head and past a valve used to open and close the port.

What connects to the cylinder head?

The cylinder head is where a great deal of the action for running your engine happens. It contains the combustion chambers where the quick burn of fuel and air that moves the pistons occurs. For this to take place, the cylinder head must be connected to the intake and exhaust manifolds.

What are the signs of low engine oil?

• Oil pressure warning light.
• Burning oil smell.
• Strange noises.
• Weaker performance.
• Overheating Engine.

Why is my car losing oil but no leak?

Worn Out Piston Rings or Cylinder Walls However, if your piston rings have worn out or the cylinder wall has begun to deteriorate, then the seal may no longer function properly. With a faulty seal, oil can enter the combustion chamber, burn, and leave you with less oil than you started with.

How is the valve train lubrication?

Coating Valve Train Components. The valve train sees many benefits from the use of Dry Film Lubricants. All of the parts are minimally lubricated by engine oil. Consequently, excessive wear is always of concern, especially at start up or after the engine has been sitting for an extended period.
