How do channel drains work

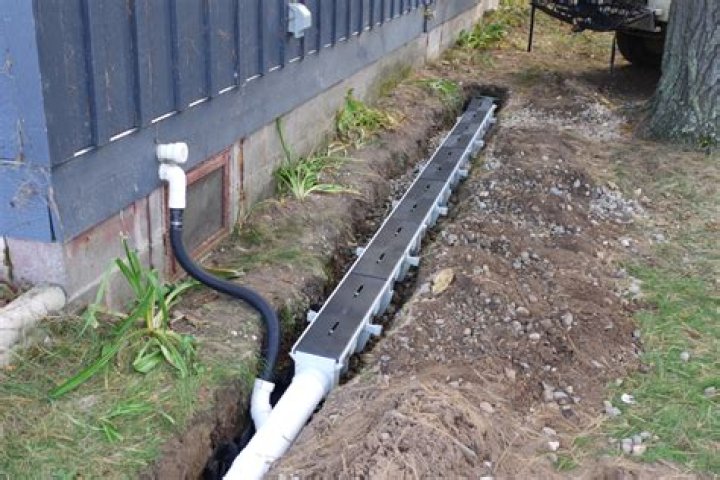

Channel drain (also called trench drain) is a linear drain that moves water through an underground drainage system. It collects and disperses the runoff over a large area. Think of it like your home’s gutter system—except in the ground!

Where do channel drains drain to?

Channel drains are used in a wide range of locations, varying from garage thresholds, patios and driveways to car parks, airports, swimming pools and more.

Does a channel drain need a trap?

Sump Units: this is an optional component of channel drain installation. A sump offers a silt basket that helps prevent blockages. It typically includes a water trap that will prevent any odours from standing water.

How much water can a channel drain handle?

How much water can the Slim Channel drain? The grates for the Slim channel can handle 21.44 GPM (gallons per minute) per lineal foot.

Does a channel drain need to be sloped?

When it comes to the in-floor draining system, your floors must have a slope that allows water to flow to the drain channel. … With this system, you need a two-sloped floor to let it work properly. You can use this system for outdoor and indoor commercial, residential, and industrial applications as well.

How wide should a channel drain be?

Water can also pool around landscaping and cause damage to the exterior of a residence. Channel drains come in 5″ wide , 8″ wide and 12″ wide sizes.

What is the difference between a channel drain and a trench drain?

Trench drains may also be called channel drains and are an above-ground drainage solution. … Aside from what we’ve listed here, the difference between a French drain and a trench drain is that a French drain is used for water that is underground while a trench drain diverts excess water from a surface.

How do you connect a channel drain to a soakaway?

Fit a plastic underground drainage pipe from the drainage channel or rainwater pipe into your soakaway, and attach a gully trap at the top end of the pipe. Make sure your pipe slopes towards the soakaway. Then refill the hole with clean aggregate (40mm or larger), allowing for at least 300mm of top soil.

How much does it cost to install a channel drain?

4. Trench or Channel Drain Installation Cost Per Linear Foot. Trench or channel drains cost $30 to $100 per linear foot. Complex installs might run $150 per linear foot.

Can channel drains be cut?

Please note the drainage channel can be cut up to a maximum of half a metre (only the galvanised grid could be cut to half a metre). … TIP: Tape the grids up with masking tape to prevent the grids and drainage channels from soiling. Now place the final cover (grass, bricks, etc.)

Article first time published on

Can you install a channel drain in gravel?

The ideal time to install a channel drain is when you first put in your driveway or sidewalk. … If your driveway is just dirt or gravel, it’s not too big a deal; just measure it up, dig it out with a pickaxe and shovel, put a tamped-down bed of pea gravel under the unit, and proceed with the installation.

What does NDS mean in plumbing?

Drainage. Catch Basins (31)

How much slope does a channel drain need?

All of your drain pipe (with one exception) must slope slightly downhill. Usually 1/8″ per foot is plenty for drainage, this is the same as the commonly recommended 1% slope.

Does a channel drain need an outlet?

Length of RunFall Required (mm) – Outlet at One End2.5m12.5mm3m15mm4m20mm5m25mm

How much fall does a channel drain need?

Q: What is the recommended slope the channels should be installed at to ensure adequate drainage? A: 1/8 inch of a slope for every 1 foot for adequate fall.

Does ACO need a fall?

A common misconception is the belief that a slope is needed for water to drain effectively. However, this is not necessary. As long as the channel is laid flat and level, the water will be able to flow, providing the outlet is below the level of the channel.

What should the fall be on drainage?

All above and below ground horizontal drainage pipes should be laid to an adequate gradient. Gradients from 1 in 40 to 1 in 110 will normally give adequate flow velocities. A gradient of 1 in 80 is suitable for commencing calculations for pipe schemes.

What's better French drain or trench drain?

While French drains deal with water that’s underground, trench drains divert excess water away from the surface. … These drains are great for managing excess rainwater and stormwater in concrete areas such as parking lots, sidewalks, and driveways.

How deep dig French drain?

French drain depth: About 8 inches to 2 feet deep should be sufficient for many water-diverting projects, though related systems, such as those built around foundations and sub-ground living spaces, as well as the bases of retaining walls, may be deeper.

Does a French drain need a pipe?

Officially a French drain is a gravel drain with no pipe. The water just collects in and travels through in a gravel or stone filled channel that starts from the surface or just below it.

Why do trench drains fail?

There are common reasons as to why and how a trench drain system can fail. Most often those reasons consist of poor maintenance, incorrect or improper drain system, grating, and/or installation for the application.

Can I drive over a channel drain?

The system comes with end caps and outlets to fit standard-sized plastic drain pipes. If you plan to have traffic drive over your drain, you really should install the drain on a poured concrete base. … You don’t want to make the concrete level because then the water may decide to not flow into the drain.

How deep is a trench drain?

Dig a Trench The trench should be about 18 inches deep and 9 to 12 inches wide. French drains need to have a slope of at least 1 percent, so the force of gravity will work for you. This means that the drain should slope down a total of at least one inch for every 10 feet of pipe.

How do I stop standing water in my yard?

Re-grade. Professional landscapers can provide you with a survey of your lawn’s trouble spots, natural drains, and channels. …
De-thatch. …
Aerate your lawn. …
Give your soil a boost. …
Find the hardpan. …
Extend downspouts. …
Raise the soil. …
Install a French drain.

Why do French drains fail?

Over time, a French drain may become clogged. Tiny soil and clay granules slip through the pores of the landscape fabric and gradually build up inside the pipe. Another common cause of French drain clogs is root intrusion from grass, shrubs, and trees.

What is French drain basement?

A French drain (also called a weeping tile, drain tile, perimeter drain or sub-surface drain) is a common basement waterproofing solution. It’s a trench containing a perforated pipe that redirects surface water and groundwater away from the foundation.

Can you connect downpipe to channel drain?

The ACO rainwater downpipe channel connector is an effective method for connecting downpipes directly into the channel body, eliminating the risk of blockages and allowing full flow. … The connector is offered in a range of sizes and colours for a circular or square downpipe drain.

How far does a soakaway have to be from a boundary?

The regulations state that a rainwater soakaway must be located at least five metres from the wall of a building and at least two and a half metres from a boundary. This is to prevent subsidence of the wall and to stop rainwater on your property from flowing into your neighbour’s garden.

Where do driveway drains go?

In driveway drainage applications, the drain is installed to run the width of the driveway. The drain should be placed at the lowest point of the driveway, where water usually accumulates. Sometimes, driveways are sloped towards the garage all the way up to garage entrance.

How do driveway drains work?

The driveway channel drain works by collecting water flowing down the driveway and channeling it elsewhere. The channel drain is usually completed with a metal driveway drainage grate, which keeps debris such as leaves and plants form blocking the drain, and also allows your car to easily drive over it.
