How can we divide voltage

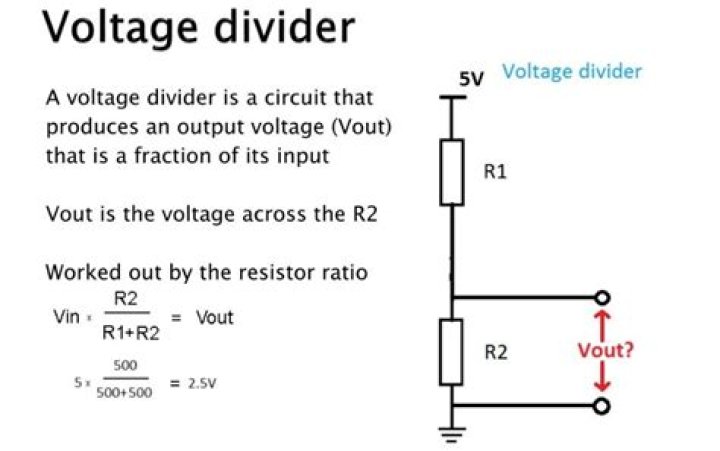

When we place 2 resistors of the same value in series, voltage will divide equally among them. Voltage is directly proportional to resistance, according to ohm’s law by the following formula, Voltage= Current * Resistance (V= IR).

How do you split voltage in series?

if two identical components are connected in series, the supply voltage divides equally across them. if one component has twice as much resistance as the other, the voltage across the higher resistance component is double the voltage across the lower resistance component.

How do I reduce 5V to 3.3 V?

Step-down level shifters The simplest possible step-down circuit is a resistive divider. Drive your 5V output into a chain of resistors, from which you tap your 3.3V logic input. A chain consisting of a 2.2k and a 3.3k resistor should produce a 3V output from an applied 5V input.

How do I reduce 5V to 3.7 V?

To convert 5 v to 3.7 v at fixed load ,we just have to add a fixed series resistor. 5 to 3.7 that means our series resistor have to create 1.3 v drop across it. For load 0.5A , R= 2.6Ohms and power rating is 0.65W. Idea of using zener diode is good with small series resistor.

How do you divide voltage without a resistor?

You don’t NEED to use a voltage divider, you could use a zener diode, or a voltage reference IC, but only a resistor divider will ‘track’ the input voltage as it varies, and behave ratiometrically.

How do you calculate R1 and R2 voltage divider?

The voltage divider Resistor calculator calculates the value of the resistor, R2, of the voltage divider network based on the value of resistor, R1, the input voltage, VIN, and the output voltage, VOUT. This resistor value of R2, is calculated by the formula, R2= (VOUT * R1)/(VIN – VOUT) .

What is voltage division rule?

Voltage division rule is one of the basic rules of circuit analysis. … The voltage across any resistor in a series connection of resistors shall be equal to the ratio of the value of the resistor divided by the equivalent resistance of the circuit.

How do you downgrade voltage?

How to Reduce Voltage in Half. To reduce voltage in half, we simply form a voltage divider circuit between 2 resistors of equal value (for example, 2 10KΩ) resistors. To divide voltage in half, all you must do is place any 2 resistors of equal value in series and then place a jumper wire in between the resistors.

How does current split in a series circuit?

In a series circuit, the current that flows through each of the components is the same, and the voltage across the circuit is the sum of the individual voltage drops across each component.

Can you charge a 3.7 V battery with a 5V charger?

Generally, a 3.7V lithium battery needs an overcharge and overdischarge protection circuit board. … Lithium battery with protection circuit board can be charged with 5V voltage(4.8V to 5.2V can be used). For 3.7V lithium batteries, the charge cut-off voltage is 4.2V and the discharge cut-off voltage is 3.0V.

Article first time published on

How do you drop voltage from 5V to 3v?

You can use a pot (potentiometer), a Zener diode, a combination of s transistor and diode, or a combination of resistors of appropriate values to reduce voltage from 5 V to 3 V.

Can I use 4.5 V instead of 5V?

They’re very stable on the output voltage and can kick out an amp or so. It’ll work fine.

How do you convert 5V dc to 3.3 DC?

You can use any 3 resistors with same value connected in series to 5V and take voltage from 2 of them. So it will be 2/3 from 5V = 3.333V – very close to 3.3V.

What resistor do I need to drop 12v to 5V?

12v to 5v converter using a voltage divider: Components required: One 12v battery, 1.8k resistor, 1.3k resistor, connecting wires.

How do you drop voltage without dropping current?

1. Use a resistor: Connect a resistor with DC supply in series with the load so that when you turn on dc supply, basically the load takes required voltage and the resistor dissipates the remaining voltage in the form of heat.

How can I reduce voltage without losing?

Power = volts x current x power factor. So for not loosing power or keeping it constant, you can reduce voltage by either one or two of the variables in above formula i.e. current and / or power factor. Normally power factor is improved by using capacitor bank(s) in inductive circuits.

How do you reduce 12V DC to 9V DC?

To reduce a 12V circuit to 9V, place two resistors in series within the circuit. Find the difference between the two voltages (12V – 9V = 3V) to determine the total amount of resistance needed.

How do you divide current?

When only two resistive branches are involved, the current in one branch will be some fraction of the total current IT. If the two parallel resistive branches are of equal value, the current will divide equally.

How potentiometer is used as voltage divider?

Potentiometers can be used as voltage dividers. To use the potentiometer as a voltage divider, all the three pins are connected. One of the outer pins is connected to the GND, the other to Vcc and the middle pin is the voltage output. Basically, the voltage divider is used to turn a large voltage into a smaller one.

How does a voltage divider affect current?

A simple voltage divider is two resistors in series, attached to a voltage. The voltage across the resistors makes a current flow through the resistors.

Does voltage split at a junction?

If the junction is between components in series, no, it doesn’t split. If the junction is at paralleled components, yes, it does split.

Why is voltage divided in a series circuit?

This is what happens in a electrical network with resistances in series. Due to the flow of current through the resistors there is a voltage drop across every resistor which leads to the voltage division.

Why does voltage not split in a parallel circuit?

Voltage is a measure of energy (in Joules) per unit charge (in Coulombs). As each electron has the same charge, each electron is carrying the same amount of energy, so the voltage across each branch of the parallel circuit will be the same because the voltage doesn’t epend on the number of electrons in each branch.

How do I lower my power supply voltage?

Two ways to reduce a 12-volt system to 4 volts are to use voltage dividers or Zener diodes. Voltage dividers are made from resistors placed in series. The input voltage is divided into an output that depends on the value of the resistors used.

How do capacitors reduce DC voltage?

The conventional method is the use of a step-down transformer to reduce the 230 V AC to a desired level of low voltage AC. The most simple, space saving and low cost method is the use of a Voltage Dropping Capacitor in series with the phase line.

Do resistors reduce current or voltage?

Resistors don’t reduce current and voltage instead it opposes flow of current and produce drop in voltage across the terminals.

How do you charge a lithium battery without a charger?

1. Charge Spare Battery Without Phone.
2. Charge Battery Using USB Port.
3. Charging Using Alternative Energy Sources.
4. Charging Battery With Power Supply.

Can I use a phone charger as a power supply?

“Pass me my Phone Charger”…… … Your USB Smart Phone Charger is actually a Power Supply! As it designed to give a constant output, your Phone actually does all the charge control. This is designed to offer flexibility so your phone can be plugged into any USB port, on your PC for example.

Can I charge a lithium battery with a normal charger?

You can use a lead-acid charger to charge lithium batteries as long as you can set the maximum voltage of the charger and as long as the charger does not have an automatic equalisation mode enabled.

How do you reduce voltage from 5V to 2V?

voltage divider is one of the solution to change 5V to 2V! If you design in the transistor level, you need 2 transistors act like active resistor! Use the multimeter to check the voltage from your node to the Gnd!

How do you reduce 9V to 3v?

To reduce a 9V battery to 3.3 volts, use a zener diode, such as a 1N746 or a 1N4728A. Choose the appropriate one based on how much power it can dissipate. A 1N4728A has a 3.3-volt and a 1 W power rating. It can supply, on average, a stable 3.3 volts to a circuit or another component.
