How big can a barn door be

Formula for an approximate result, divide the area value by 9.223e+18

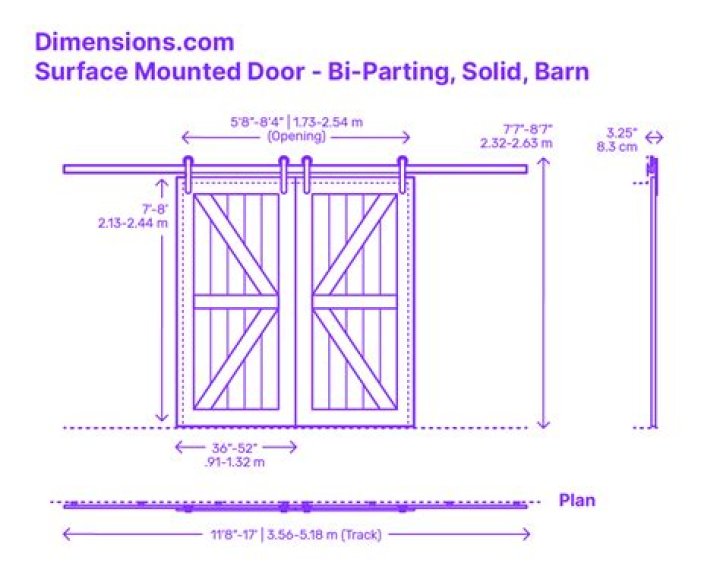

What is the maximum width of a barn door?

Most barn door sizes fall anywhere between 36” wide (on the shorter side) by 96” tall (on the longer side). Generally, most standard barn doors are approximately 36” X 84” or 42” X 80” – with enough extra lip to overlap most standard door frames (36” X 80”) by an inch or so.

Should a barn door be wider than the opening?

The door must be wider than the doorway That’s right. Barn doors hang from a track outside the room, covering the doorway, but leaving gaps at the sides between wall and door. For complete coverage and to minimize the gaps, make sure the door is at least several inches wider than the opening.

How big should my barn door be?

To determine the proper door width, add about 4 to 6 inches to your measurement. Ideally, the door will cover 2 to 3 inches beyond the opening on each side. To figure out what size track you need, double your final width measurement. Measure from the header to the floor to determine the door length you need.

Can a barn door be 2 thick?

What thickness of barn doors does your hardware accommodate? Most of our barn door hardware accommodates up to 1.50″ thick door but a header board (to push the track away from wall more to allow clearance) can be used if you have thicker doors.

Can a regular door be used as a barn door?

While you can buy doors intended for a barn-door installation (Home Hardware and Home Depot have lightweight K- and Z-style doors), virtually any door can be converted to a barn door with special tracks and hangers.

How wide is a 36 barn door opening?

Measuring For Double Sliding Doors Door Height: Measuring for door height follows the same process as measuring for single doors. Door Width: If you’re using two doors of the same size, measure the width the same way you would for a single door, and divide by two (a 36” door opening would use two 18” wide doors).

How high off the floor should a barn door be?

A good rule of thumb is to situate the top of your sliding barn door a few inches above the height of your opening and that the bottom of it sits roughly one inch from the floor – enough to keep it tracked so it glides smoothly without swinging or swaying.

What size door do I need for a 31 inch opening?

Rough Opening WidthRough Opening HeightDoor Size to Order29.75″ – 31″81.5″ – 83″28″31.75″ – 33″81.5″ – 83″30″33.75″ – 35″81.5″ – 83″32″35.75″ – 37″ 37.75″-39″81.5″ – 83″34″ 36″

How thick should Plywood be for a barn door?

Cut Plywood to the Size of the Door Frame Cut a sheet of ¾” plywood to the size of your door opening plus the trim. You want to cover the trim entirely when the barn door is closed. This both looks better and provides more of a sound barrier between rooms. What is this?

Article first time published on

What is the average thickness of a barn door?

Typically an Interior door backset is 2-3/8”. An Exterior (1 ¾” thick or thicker) is 2 ¾” Backset.

Does a barn door need a bottom track?

To be safe, barn doors need a bottom guide to prevent the door from swinging or coming off the track. … The piece is affixed to the wall trim and creates a channel which the barn door slides into. Once properly installed, the EZ Install Bottom Guide prevents the door from coming off the wall.

What is the rough opening for a 36 door?

Standard Sizes A 36” x 80” pre-hung single door will use a rough opening of approximately 38-1/2” x 82-1/4” to fit. Always remember to square up your door before you nail the frame in place to assure it will close properly.

What type of wood is used for barn doors?

When choosing a barn door, you have the option to use hardwood (like ash) or softwood (like pine). The best wood for your barn doors will largely come down to personal preference and where you’re using the door. Hardwood doors made out of a species like ash are very durable.

Is it difficult to install a barn door?

Learning how to install a barn door is not difficult. It does require attention to detail to ensure the door operates properly and safely. Sliding barn doors work best when there is enough empty wall space next to the opening that the door can slide completely open.

Is a 32 inch door actual 32 inches?

No, the door frame will be 32 inches. The door itself will be about one eighth to one quarter of an inch narrower to allow space for opening and closing it. Doors are sized to order — in the United States of America. Therefore a 32″ door is 32″ wide.

What size door do I need for a 30 inch opening?

So, if you have a bedroom door that is 30″ wide (which is considered a 2/6 or 2′-6″ door) just add 2″ to the width and frame it 32″ wide. The height is 80″ (which is considered 6/8 or 6′-8″) add 2-1/2″ to the actual door height and frame it 82-1/2″ high.

What is the actual size of a 32 inch door?

2’8″ (32 Inch) Door Width (Actual Size 31-3/4″) by Door Closers USA.

How much does it cost to make a barn door?

The average cost of a sliding barn door is $600, with a range between $200 and $1,000. This cost includes parts and labor, with the biggest cost variables including the material, size and labor costs for your area. The parts for this style include the door itself and mounting hardware such as the track.

What is the rough opening for a barn door?

You will need a minimum of 40-3/8” for a 36” wide door and at least 43” for a 42” wide door. The entire wall, from ceiling to floor, will need to be unobstructed.

Do barn doors need to be solid?

The answer is yes, but it depends on how it is installed and the materials used. Solid wood is better at soundproofing than a hollow-core door, and the thicker the door, the better. … A brush sweep along the bottom can also helpsoundproof a sliding barn door.

Can you hang a barn door without studs?

Installing a Barn Door on an Existing Wall To safely mount the door, you will need a header board to carry the load of the door without having to open the drywall to modify the studs. It’s very important that you only use clear straight lumber for the head casing.

How wide is a 36 in door frame?

The doors are 80 inches high. The dimensions of your opening should be 3812 inch wide by 8142 inch tall, if the door is 36-inch wide.

How big should a rough door opening be?

The width of a door’s rough opening is the width of the door plus 2 inches. The 2 inches accounts for a 3/4-inch jamb board on each side plus 1/2-inch adjustment space. If you are using pre-hung doors, the opening should be 1 inch to 1 1/2 inch wider than the door and its jambs.
