How are smoke alarms wired

Hardwired smoke detectors are installed by cutting squares in the home’s upper walls or ceiling, then running the necessary electrical wires to connect the smoke detector mounting brackets to the home’s electrical system.

How are hardwired smoke detectors interconnected?

Hardwired interconnection uses the wiring in your home to link AC-powered alarms together. The alarms communicate with each other via DC signal in the orange wire, which we call the Interconnect wire. The same fuse or circuit breaker in the home powers all interconnected units. … Replace a Kidde or Firex Alarm.

Can I disconnect my hardwired smoke detector?

Most people ask themselves, “can I remove a hardwired smoke detector?” The answer is you can！ If you have to stop the hard-wired smoke detectors from beeping, you must unplug them from the clip and remove the battery.

Are smoke alarms wired together?

Smoke detectors need to be wired together to create a complete system. With hard-wired detectors, a single smoke detector going off will set off the others — ensuring that everyone in your home is alerted to hazards. Hard-wired detectors are also able to run off both power and batteries, making them extra secure.

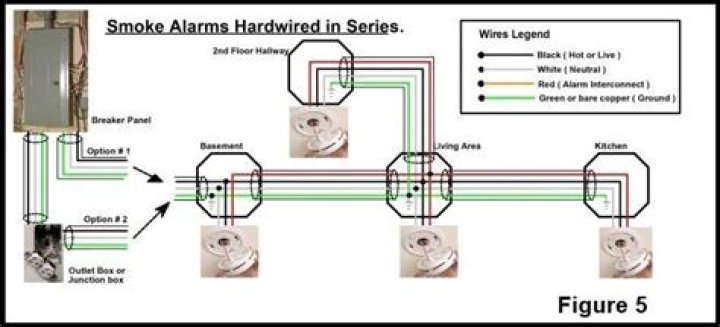

Are smoke detectors wired in series or parallel?

In addition, if you have a home with more than one floor, it’s important for the smoke alarms to be wired in parallel so if one goes off in the basement, every alarm will sound throughout the home.

Which is better hard wired or battery smoke detector?

Hardwired smoke alarms are more dependable as they are connected on a power supply. Once the alarm sounds, they will not stop until turned off. In case of power interruptions, they have battery backups for continuous operation. Battery-powered smoke alarms depend solely on the batteries.

How do you know if your smoke detectors are interconnected?

You can check to see if your traditional smoke detectors are interconnected by removing the smoke detector and checking to see if it has 3 wires in the back. If the smoke detector has 3 wires and all three wires are connected in the electrical box your smoke detector is most likely interconnected.

Why do hard-wired smoke detectors go off for no reason?

A hardwired smoke alarm could go off because of a dead backup battery, power surges, improper installation, dust in the air or humidity.

Do fire alarms have to be interconnected?

For the best protection, interconnect all smoke alarms. When one smoke alarm sounds they all sound. … When interconnected smoke alarms are installed, it is important that all of the alarms are from the same manufacturer. If the alarms are not compatible, they may not sound.

Why do hardwired smoke detectors beep?

Most hard-wired smoke detectors use a 9-volt battery that is supposed to kick in if your home loses electricity. When that battery is running low, your detector alerts you with a chirp that it’s running low. Replacing the battery solves the problem. Smoke detectors sit on your ceiling or walls and accumulate dust.

Article first time published on

What is the difference between 2wire and 4 wire smoke detectors?

Differences. The key differences between two and four-wire systems are the numbers of wires and how the wiring is connected to the control panel to trigger the alarm. A four-wire system has separate wires, while a two-wire system uses the same wires to power the unit and to trigger the alarm.

Do all smoke detectors need to be hardwired?

Fire and Rescue NSW recommends wherever possible, hard-wired and interconnected smoke alarms are installed. If your alarms cannot be hard-wired, FRNSW recommends smoke alarms that rely on 10-year lithium batteries.

How long do hardwired smoke detectors last?

How Often Should Hard-Wired Smoke Detectors Be Replaced? As mentioned before, smoke detectors should be replaced every 10 years. After about a decade, your sensors will become weak and less efficient, which makes it less likely for them to perform their most basic function: detecting smoke in your home.

How much does it cost to install hardwired smoke detectors?

The cost to have a wired smoke detector installed is about $75 – $150 per smoke detector. The cost for a single wired smoke detector unit is between $15 – $30, and professional installation costs about $40 – $100 per hour.

How do you stop a hardwired smoke detector from beeping?

Hard-wired smoke detectors (which typically include a backup battery) are subject to similar issues as those that operate on a battery only. However, hard-wired units often require resetting after problems are addressed. Simply hold the reset button for 15 to 20 seconds to silence the noise.

How do you turn off a hardwired smoke detector?

1. Disconnect the alarm and remove its battery.
2. Holding the alarm by its edge, use a keyboard cleaner to remove debris on the side of the device.
3. Press and hold the test button for five seconds.
4. Reconnect the device to power and its backup battery. It will chirp once it connects to power.

Do smoke alarms have to be mains powered?

New build houses or properties that have had material alterations carried out, such as extensions, must be equipped with mains-powered interlinked smoke detectors. All of these mains powered alarms have an alkaline or lithium back-up battery. …

Are smoke detectors hard-wired?

They are hard-wired into our electrical system, but that doesn’t mean you need an electrician to replace them. … Most hard-wired smoke detectors have a connection from the electrical wires to the smoke detectors that engages and disengages.

Why do smoke alarms go off at 3am?

As a smoke alarm’s battery nears the end of its life, the amount of power it produces causes an internal resistance. … Most homes are the coolest between 2 a.m. and 6 a.m. That’s why the alarm may sound a low-battery chirp in the middle of the night, and then stop when the home warms up a few degrees.

Why is my hard-wired smoke detector beeping and flashing red?

Smoke alarms will make a ‘beep’ or ‘chirping’ sound when they have a low battery or are faulty. … This same red light flashes continuously when the Smoke Alarm has been activated. If there are interconnected smoke alarms the fast flashing red light will indicate which smoke alarm initiated the alarm.

How many wires does a smoke detector need?

If you buy an AC-powered smoke detector today, it will have three wires — black, white and red. Black accepts 120 volts AC, white is neutral, and red is the intercommunication wire.

How do you wire a 2-wire smoke detector?

To connect a 2-wire smoke to a security system, connect the positive and negative zone terminals from the alarm system to the positive and negative terminals on the smoke. Most systems require that a resistor be installed at the smoke detector to provide supervision of the zone wiring.

Are wired smoke detectors low voltage?

Low-voltage hardwired smoke detectors are designed to be connected to a home security system’s control panel. Combined with fire alarm monitoring, this gives the best protection for both life and property. … When low-voltage smoke detectors are added to a house, the 110-volt units should not be removed.

What is a 2 wire smoke detector?

2-wire smoke detectors are hardwired smoke detectors that detect the early signs of smoke or fire using the zone wiring of the home or business fire alarm system. These devices are usually restricted to a hardwired zone and uses a single pair of wires to combine detection and power loops.

How does a 4-wire smoke detector work?

A 4-wire smoke detector is just like a 2-wire smoke detector, except that it receives its power from an auxiliary power supply rather than the conventional Initiating Device Circuit. Both the 4-wire and the 2-wire smoke detector sense particles in the air and call the particles smoke.

How do you reset a 4-wire smoke detector?

A 4-wire smoke detector functions in a somewhat unique way compared to other hardwired devices. Once a 4-wire smoke activates, the only way to reset it is to drop power to that device. For that reason, an external power relay must be used with a 4-wire smoke.

Can smoke alarms be interconnected wirelessly?

Kidde Wireless Smoke Alarms enable you to extend the coverage and protection of interconnected smoke alarms —without any need for additional wiring! This alarm uses ionization sensing technology.

Does a hardwired smoke alarm have a battery?

Hardwired smoke detectors run on electricity, but they also have a backup battery for power outages. When you hear a hard-wired smoke detector beeping, it means you need to replace its battery.

Why do wired smoke alarms have batteries?

But nearly all smoke detectors, including those that run on household current, do contain a battery. Detectors that are hard-wired to the home’s electrical system use this battery to provide backup power in case a fire knocks out the house’s electrical power.
