How are gauge blocks used

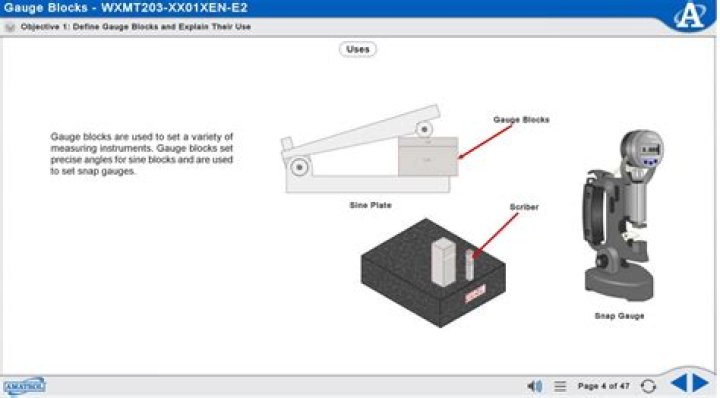

What are gauge blocks used for? Gauge blocks are used to calibrate engineering equipment, (e.g. micrometers and Vernier calipers). Higher grade gauge blocks can also be used to calibrate other gauge blocks of the same or lower grade.

How are gauge blocks calibration?

NIST master gauge blocks are calibrated by interferometry in accordance with the definition of gauge block length. Each master block carries a wringing layer with it, and this wringing layer is transferred to every block calibrated at NIST by mechanical comparison techniques.

How often should gauge blocks be calibrated?

2) HOW OFTEN SHOULD GAGE BLOCKS BE CALIBRATED? Industry consensus is that gage blocks be calibrated every 1 to 3 years. Calibration intervals may be shortened or lengthened as needed. The frequency of calibration is determined by the user with consideration given to usage, care, and desired accuracy.

Why do gage blocks come in sets?

Gauge blocks come in sets of blocks of various lengths, along with additional wear blocks, to allow a wide variety of standard lengths to be made up by stacking them.

How do you handle gage blocks?

1) Keep the blocks clean. After using the gages, wipe them all over with a chamois or soft cloth, holding the gages in such a manner that the hands and fingers never come in contact with the blocks. When placing the gages back in their case, do not touch the gages with your hands.

Why do gauge blocks wrong together?

The source of the forces holding gage blocks together are thought to come from: Air pressure from the surrounding environment as the air is squeezed out when the blocks are slid together. Surface tension from oil that remains on the gage blocks or water vapor from the air that acts as an adhesive to hold them together.

How the temperature is affecting the gauge blocks?

The thermal expansion of a steel gage block is 6.4 ppm/°F. The thermal expansion of a ceramic gage block is 5.5 ppm/°F. grow 5.5 µin. For a 2” block, a 1°F temperature increase will make a steel block grow 12.8 µin and a ceramic block will grow 11 µin!!!

What is the purpose of wringing gage blocks before stacking them?

The wringing process allows for a near zero clearance between multiple gage blocks, reducing stack up errors. Ideally, when wringing gage blocks together, you should strive to use the fewest blocks needed to achieve the required length.

Do gauge blocks need to be calibrated?

Like most test, measurement and inspection equipment, gage blocks require regular calibration to maintain accuracy. … Subjecting the gage blocks to calibration is the best way to verify accuracy.

What is a grade 0 gage block?

6) Choose an accuracy grade. Grade 0, Webber A1: The most popular grade of blocks: 1) it is accurate enough to perform 95% or more of all applications. This grade is recommended for general use. 2) most steel blocks are Grade 0, and steel is the most popular choice of gage block materials.

Article first time published on

Do pin gauges need to be calibrated?

Pin, plug and ring gauges should be calibrated once per year unless they are used excessively in which case the interval should be increased accordingly to ensure their accuracy.

What are pin gauges?

a0106201Description01: Pin gages (also known as plug gages) are used to test hole size and it’s geometry. … They’re commonly used in combination to produce a “Go-No Go” gage that quickly qualifies a bored hole. Pins are especially useful for gaging the straightness of a realtively deep bore.

Why do we always use the minimum number of blocks combination?

Use the minimum number of blocks possible because each wring presents a possible error. The simplest rule to remember in selecting individual blocks to make up a given combination is to select a block to eliminate the right hand digit of the dimension first, then the next, and so on until the combination is complete.

What is a Grade 2 gage block?

More recently, the U.S. Federal Specification designated gage block grades as follows: 0.5 as equivalent to grade AAA, 1 as equivalent to grade AA, 2 as equivalent to grade A+, and 3 as a compromise between grade A and grade B.

What do you understand by wringing of slip gauges Why is it necessary?

Wringing of Slip Gauge: If two slip gauges are forced against each other on measuring faces, because of contact pressure, gauges stick together and considerable force is required to separate these blocks. This is known as wringing of slip gauges.

Which type of tolerance does a slip gauge have?

Explanation: Angle gauges are about 30 mm long and 10 mm wide. Slip gauges are like a system to produce precision length. Explanation: AAA has very small tolerance and are used to establish standards. AA has low tolerance and is used in calibration of inspection blocks.

What is the act of joining the slip gauges together for building up sizes?

A particular size can be built up by wringing individual slip gauges together. Wringing is the act of joining the slip gauges together while building up to sizes. Wringing is the phenomenon of adhesion of two flat and smooth surfaces when they are brought in close contact with each other.

Do vernier calipers need calibration?

Vernier calipers are a form of highly accurate measuring device that gauges to the thousandth of an inch the distance between two symmetrical sides opposing one another on an object. … In order to ensure precision of measurements, it is important the calipers be maintained by calibrating them regularly and carefully.

Is standard for vernier caliper?

Accordingly the standard was split and IS ; 3651 (Part 1 F-1982 ‘Specification for vernier callipers : Part 1 Vernier callipers with least count 0’1 mm and 0’05 mm’ was published in 1982 based on IS0 3599-1976 ‘Vernier callipers reading to 0’1 mm and 0’05 mm’ issued by the International Organization for Standardization …
