How aperture is calculated

We use “f-stops” to measure aperture, which notes the ratio between the focal length of the lens and the actual diameter diaphragm opening. To double or half the amount of light coming in, we multiply or divide by a factor of √2.

What is the f-stop scale?

An f-stop is a camera setting that specifies the aperture of the lens on a particular photograph. It is represented using f-numbers. The letter “f” stands for focal length of the lens.

How do you calculate stop light?

1. A stop of light = double or half the amount of light in respect to a photographic exposure (image)
2. Doubling the ISO will INCREASE the exposure by 1-stop.
3. Doubling the shutter speed (making it faster) will DECREASE the exposure by 1-stop.

Why is aperture measured in F stops?

Aperture is measured in f-stops. What is an F-Stop? An f-stop (or f-number) is the ratio of the lens focal length divided by the diameter of the entrance pupil of the aperture. As such, an f-stop represents the relative aperture of a lens; it is basically a way to normalize the aperture setting across different lenses.

What does F 2.8 mean in photography?

It means the aperture ring is opened at f 2.8. It means you will get more light to the sensor and more bokeh but you will get lesser depth of field (The area in focus). Generally this kind of open aperture is used for portrait photography.

What is the difference between f-stop and aperture?

Technically, aperture is the size of the hole that lets light in. … In comparison, the F-stop is simply a scale that correlates the aperture to the focal length of the lens. So a longer lens can have a bigger aperture while a shorter lens can have a smaller aperture, yet they would be at the same F-stop.

Does f-stop equal aperture?

The “aperture” is the diameter of the entrance pupil of the lens, and is measures in mm. The “f-stop” is the ratio of the focal length and the aperture diameter: f-stop = focal length / aperture diameter. The aperture, in combination with shutter speed, determines how much total light that reaches the sensor.

Is F stop the same as shutter speed?

A: Aperture (f/stop) and shutter speed are both used to control the amount of light that reaches the film. … f/5.6 allows twice as much light as f/8). Shutter speed works similarly, but controls the amount of light reaching the film plane via the length of time the shutter is open.

What is the largest f-stop?

The largest aperture it offers is f/1.8. I took this photo at f/1.8 with the Nikon 20mm f/1.8 lens. The only lighting in this shot is the moon. With a large aperture (and a tripod) you can practically see in the dark.

What are the standard shutter speeds and standard f-stops?

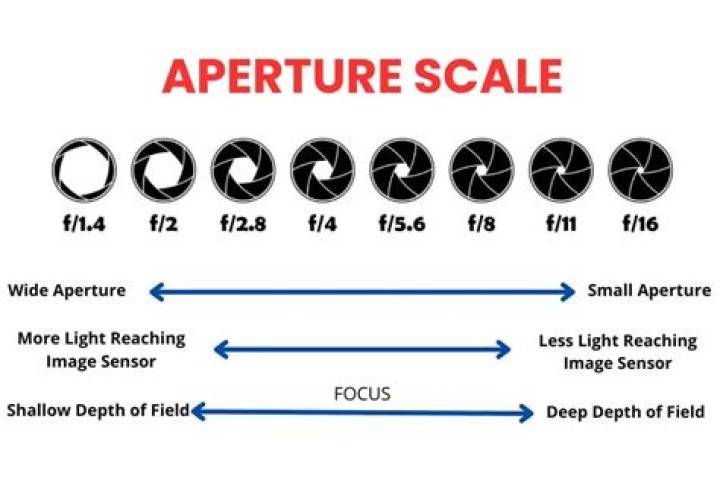

Standard f/stops: 1.4 (widest opening), 1.8 (or 2), 2.8, 4, 5.6, 8, 11, 16, 22, 32, 45. Most cameras can set half stops. Standard shutter speeds: 1 (one second, slow shutter speed), 2 (half second), 4, (1/4 second, etc.)

Article first time published on

What are the standard f-stops on a camera?

The main f-stops are f/1.4, f/2, f/2.8, f/4, f/5.6, f/8, f/11, and f/16. Each of these is what’s called a stop, and depending on your camera you might be able to change a setting to adjust exposure in either ⅓ stops (e.g., f/5.6, f/6.3, f/7.1, f/8) or ½ stops (e.g., f/5.6, f/6.7, f/8).

How do you convert F stop to Lux?

Lux is the European equivalent of footcandle and is slowly replacing footcandles. Unfortunately, they aren’t equal. There are 10.74 lux to one footcandle. Roughly, people convert lux to footcandles by dividing by 10.

What is one f stop?

In the same way as one f-stop corresponds to a factor of two in light intensity, shutter speeds are arranged so that each setting differs in duration by a factor of approximately two from its neighbour. Opening up a lens by one stop allows twice as much light to fall on the film in a given period of time.

How much light is a stop?

A stop is a doubling or halving of the amount of light let in when taking a photo. For example, if you hear a photographer say he’s going to increase his exposure by 1 stop, he simply means he’s going to capture twice as much light as on the previous shot.

What's the difference between f 2.8 and f4?

The most obvious difference between an f/2.8 and an f/4 lens is in their “brightness”, i.e. in the maximum amount of light each lens allows to reach the sensor. … An f/2.8 lens would usually be capable of giving a more shallow depth of field (and therefore a bigger background bokeh) than an f/4 lens.

What does the f1 8 mean on a lens?

Aperture sizes are measured by f-stops. A high f-stop like f/22 means that the aperture hole is very small, and a low f-stop like f/1.8 means that the aperture is wide open.

What does the 50mm lens mean?

50 mm refers to the focal length of a lens. By itself, 50 mm means 50 millimeters, which is about 2 inches. In terms of photography, this measure is a general description of how much magnification a lens will have.

What is achieved by using a low f-stop value a high f-stop value?

The lower the f/stop—the larger the opening in the lens—the less depth of field—the blurrier the background. The higher the f/stop—the smaller the opening in the lens—the greater the depth of field—the sharper the background.

Is ISO 800 brighter or darker than ISO 200?

The higher the ISO, the more sensitive your camera sensor becomes, and the brighter your photos appear. ISO is measured in numbers. Here are a few standard ISO values: 100, 200, 400, 800, 1600, 3200.

Which F stops let in the most light?

The aperture setting is measured in f-stop values, with apertures such as f/1.4 and f/2.8 often referred to as ‘wide’ apertures, as they have the widest opening and let in the most light, while apertures with higher f-stop numbers (f/11, f/16 and so on) are (perhaps rather confusingly) referred as small, or narrow, …

What is the fastest aperture?

In “professional” zoom lenses, the aperture of f/2.8 is generally regarded as fast. When it comes to prime lenses, depending on your level of lens snobbery, what is truly fast starts between f/2.0 and f/1.4 with many “professional” lenses featuring f/1.4 maximum apertures.

What is the fastest camera shutter speed?

The Steam camera not only shoots images just 440 trillionths of a second in length, it can rack up an astonishing six million of them in a single second.

What is the fastest zoom lens?

• Canon EF70-300 IS II USM Telephoto Zoom Lens: Zoom in on faraway… …
• Upgrade your full-frame Sony E-Mount mirrorless camera with this 28-75mm… …
• XF70-300mmF4-5.6 R LM OIS WR makes it easy to take super telephoto… …
• The 17-70mm F/2.8 Di III-A VC RXD (Model AFB070S700) is a large aperture…

What ISO should I use on a cloudy day?

An ISO between 400–800 works great on an overcast day. Exposure — Lower your shutter speed to let more light reach the cell, making your photos brighter. A tripod helps you keep your camera from shaking.

Is ISO a shutter speed?

The ISO controls the the amount of light by the sensitivity of the sensor. The shutter speed controls the amount of light by the length of time. The aperture (the size of the lens opening) controls the amount of light by the intensity via a series of different sized openings.

What is the Sunny 16 rule in photography?

The rule serves as a mnemonic for the camera settings obtained on a sunny day using the exposure value (EV) system. The basic rule is, “On a sunny day set aperture to f/16 and shutter speed to the [reciprocal of the] ISO film speed [or ISO setting] for a subject in direct sunlight.”

Is 1 1000 a fast shutter speed?

1/1000 sec is super fast shutter speed. Fast shutter speed lets less light into your camera and will effect exposure making your images darker.

What is a 20 second shutter speed?

Another example is 20 seconds, which shows as 20″ on the camera. The double quote is a math symbol that stands for the seconds. Many of the DSLR cameras these days have the “Bulb” shutter speed mode. In bulb mode, you can get any shutter speed up to 30 minutes.

How is shutter speed calculated?

The rule of thumb is that the shutter speed should be 1/[Focal Length]. So if you are shooting with a 500mm lens, you should set your shutter speed to 1/500 or higher. If you are using a DSLR that has a crop factor you have to multiply by the crop factor.

Which is better AF S or AF P?

AF-S NIKKOR lenses feature Nikon’s Silent Wave Motor (SWM). … AF-P lenses use a “Pulse” motor or “Stepping” autofocus motor and are even quieter and smoother to autofocus than an AF-S lens, making these lenses ideal when shooting video with a DSLR.

What aperture is the human eye?

Based on the maximum diameter of the pupil of a fully dilated pupil, the maximum aperture of the human eye is about f/2.4, with other estimates placing it anywhere from f/2.1 through f/3.8.
