Do you need joist hangers

Are Joist Hangers Necessary? No, joist hangers are not necessary.

When should joist hangers be used?

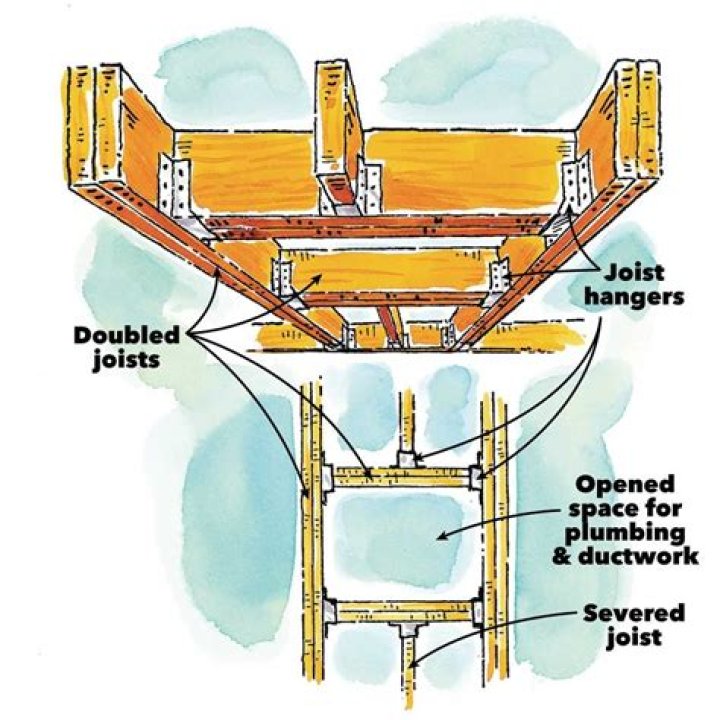

Joist hangers not only simplify the framing process but also strengthen the deck or floor you are building. When hanging floor joists, use joist hangers to make building a floor deck simpler. Place hangers every 16 inches on center.

Are joist hangers safe?

Joist hangers are safe if installed correctly. Hanging joists is by no means new. You typically need to hang a joist if the top of it needs to be in the same plane as the beam that supports it.

What is a joist hanger in a roof?

A beam hanger, also called a joist hanger, is a mechanical device used to fasten joists and rafters known as carried members to beams and headers known as carrying members.

What can I use instead of joist hangers?

Alternatives to using metal joist hangers are ledger strips, sliding dovetails or mortising and dowels. The methods vary depending on whether it is an exterior deck or an interior platform. When it comes to outdoor decks, the only plausible do-it-yourself technique would be to use a ledger strip to support the joists.

How much weight can joist hangers hold?

Joist SizeMin Capacity lbs2×64002×85002×106002×12700

Can I use screws instead of joist hangers?

Outdoors use 16d double-dipped galvanized nails (or stainless steel when called for) for installing hangers. … The manufacturers agree: Never use galvanized deck screws or drywall screws to install joist hangers. Those screws don’t have the shank size and toughness to support joist loads.

What is a jiffy joist hanger?

Jiffy Joist Hangers 150mm A quick and safe method of joist trimming for light, medium and heavy duty applications such as supporting floor joists, trimming stair wells and underslung joists. Short and standard legs have increased hole centres to spread load over greater area.

Do I need joist hangers for a free standing deck?

Re: Joist hangers on Freestanding deck Joist hangers are not really necessary when the joists are being supported from below with a beam and not hung from a wall. But there are some reasons to still use them if you want to.

Can I use joist hangers for rafters?

Joist hangers can hang rafters from a ledger, but, for sloping rafters, notch them or use special rafter hangers. If rafters will sit on top of a ledger, attach them with seismic anchors as you would attach rafters to a beam.

Article first time published on

How strong is a joist?

Fine Homebuilding notes that 2-inch by 6-inch garage joists will support a weight of up to 50 pounds per square foot. If you overload your garage’s ceiling joists, the ceiling may appear to sag from the strain.

Do floor joists have to sit on a beam?

The joists themselves should have at least 1-1/2 inches of good bearing on the sill plate, or 3 inches on masonry. … Ideally, if a load-bearing wall runs parallel to floor joists, then it should sit directly over a beam or a joist supported by a load-bearing wall below.

Is toe nailing stronger?

TOE-NAILING In contrast, toe-nailing produces a strong joint. The technique requires a pair of nails, driven at opposing 45-degree angles. It isn’t suitable for all joints, as the grain of one workpiece needs to be at an angle to the other.

How much weight can a 2x8 support?

Span (feet)Weight Supported (lb)2 x 2″ x 6″3 x 2″ x 8″61680469083990103190

Is it better to use screws or nails for framing?

Nails are often preferred for structural joining, including framing walls, because they are more flexible under pressure, whereas screws can snap. Nails are also called upon when securing plywood sheathing for exterior walls, installing hardwood floors, and attaching siding and roofing.

Are nails or screws stronger?

When deciding between nails and screws, keep in mind that nails are less brittle, so they provide greater shear strength. … Screws, on the other hand, may not be as forgiving, but their threaded shafts hold better in wood and draw boards together much more tightly and they have greater tensile strength.

Can I use a 2x8 joist hanger for a 2x10?

For example, a 2×8 joist hanger is about 6 5⁄8 inches tall. Hangers can be used with both their matching nominal joist size and the next size up—2×10 hangers are approved for use with 2x10s and 2x12s, for example.

How much weight will a 2x10 support?

Each 2×10 will support 1,200 lbs.

How much do hangers weigh?

Hanger has a mass of exactly 50 grams.

How do you attach a joist hanger to Brick?

Fit the end of the joist into the joist hanger, with one narrow edge down, so that the hanger fits up and around the two faces. Push the right tab of the hanger up against the face of the joist and mark the holes onto the brick.

Do I need joist hangers for shed floor?

The best shed-floor framing is simple and sturdy If the joists are set atop a plate (see picture) then you won’t need joist hangers to reinforce the ends of each joist. If no plates are used, you must use joist hangers. … Don’t forget to use galvanized nails for constructing this portion of the shed frame!

What size screws joist hanger?

A standard 2×10 hanger requires eight fasteners. Using #9 screws will still support the joist sufficiently with 350 extra lbs to spare. Both screws and nails will support the deck, but #10 nails will do even better.

How far apart should joists be on a deck?

Deck joist spacing should never exceed 16″ on center (with the exception of MAX deck boards, which allow for maximum 24″ on center). For a more rigid feel, 12″ or less may be preferred. If adding additional framing, be sure to keep all boards level and in plane across the tops.

What is the proper spacing for deck joists?

Deck joists are typically spaced either every 12 inches or 16 inches on center. The maximum joist spacing you can use will depend on the size and allowable span of your joists.

Can you use joist hangers for ceiling joists?

There is one place where a ceiling joist can truly “hang.” This is where it meets a beam on top of an interior or “partition” wall. A code-compliant connection includes the use of metal joist hangers, just like those used on outdoor decks.

What are Jiffy hangers used for?

Standard Jiffy joist hanger, or the Cullen KH hanger, are most of all used for light duty applications such as flat roof joists, floor joist trimming, trimming for roof light windows and floor joist with light loadings.

Do roof joists need hangers?

Rafter hangers are a common piece of hardware that is overlooked by many builders, but in truth, they are an integral part of it. In order for the walls and the rafters to withstand the weight of the roofing materials, and account for variables such as snow, rafter hangers need to be installed.

Can you use joist hangers for a lean to roof?

3 Answers. Joist hangers are fine for this application. You’d want to notch the ends of the joists with a level cut so they rest properly in the hanger.

How much stronger is a 2x10 than a 2x8?

For example, a 2×10 will be about 50% stronger when edge loaded than a 2×8.

How much of a joist can be notched?

Should be no deeper than 0.125 times the depth of the joists. Should be no closer to the support than 0.07 times the span and no further away than 0.25 times the span.

What is a joist vs beam?

Joists are typically smaller beams that run across an open space, typically arranged in parallel series to support a floor or a ceiling. … While both terms are often used interchangeably, beams are the main load-bearing structural element of a roof and joists usually span between two beams.
