Do I need a crossover cable between switches

No, you do not need a crossover cable to connect two switches, with qualifications. Most (probably all) modern switches have either an auto detect port(s) or a manual uplink switch for a particular port.

Are crossover cables still necessary?

Crossover cables are still needed in one specific scenario – to connect devices that aren’t outfitted with Gigabit Ethernet functionality. This is a high-quality, high-speed standard found in most but not all modern devices that support Ethernet.

What cable do you use between switches?

An Ethernet crossover cable is a crossover cable for Ethernet used to connect computing devices together directly. It is most often used to connect two devices of the same type, e.g. two computers (via their network interface controllers) or two switches to each other.

When should a crossover cable be used?

You should use a crossover cable when you want to connect two devices of the same type. It helps you connect a router’s WAN port to a cable or DSL modem’s LAN port. You can connect two switches/hubs by using the normal port in both switches/hubs. Straight-through cables are mainly used for connecting, unlike devices.

Do I need a patch cable or crossover cable?

While the patch cable connects two different devices, crossover cables connect two similar devices. If you’re looking to connect similar devices without using hubs or routers, you’ll need a crossover cable. … Because of the patch cable’s wire configuration, it’s only designed to connect different devices.

Why it is necessary to crossover the cables to connect two PCs?

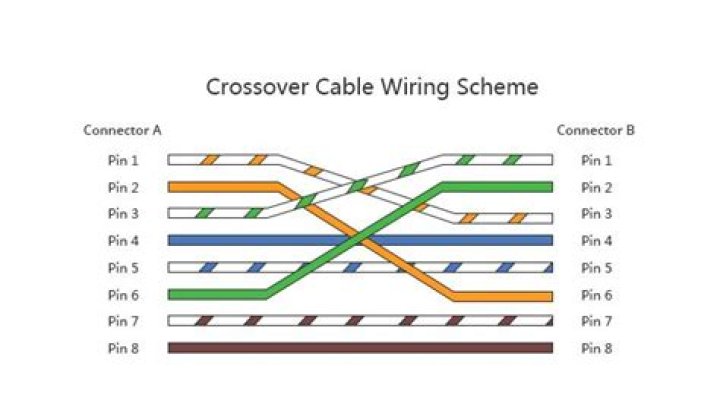

Crossover cables flip the transmit and receive wire pairs from one end to the next, so that the transmissions channel on one end corresponds to the receiving channel on the other and vice versa. This eliminates the need for a hub, switch or other intermediary hardware.

Do modern laptops need crossover cables?

current devices have implemented ethernet auto mdix. The answer is simple: You don’t need such cable.

What is the difference between straight cable and cross cable?

When you connect two devices of different types together, you use a straight through cable. When you connect two devices of the same type together, you use a crossover cable.

What is the difference between a crossover cable and an Ethernet cable?

Crossover cable uses differ from those of regular Ethernet cables. While crossover cables do fall under the Ethernet cable category, these specialized cables are meant to directly connect two computing devices or two switches together. This connection is forged by crossing over (a.k.a. reversing) the pin contacts.

How do I know if my Ethernet cable is crossover?

One easy way to tell what you have is to look at the order of the colored wires inside the RJ45 connector. If the order of the wires is the same on both ends, then you have a straight through cable. If not, then it’s most likely a crossover cable or was wired wrong.

Article first time published on

Can two switches be connected together?

Daisy-chaining network switches You can daisy-chain network switches together. … Just pick a port on both switches and use a patch cable to connect the switches to each other via these ports. And if your switch has ports with differing speeds, use the fastest ports to connect the switches to one another.

Which cable type would you use to connect two switches together using their uplink ports?

The uplink port on a network switch is used to reverse the transmit and receive circuits on a regular twisted-pair Ethernet cable. Its main purpose is to allow the direct connection of two like devices, such as two switches.

What type of cable is used with UBS and switches?

Cables Connecting Hubs and Switches. Two types of cables are used to connect devices to hubs and switches: crossover cables and straight-through cables. The difference between the two types is that in a crossover cable, two of the wires are crossed; in a straight-through cable, all the wires run straight through.

What is a crossover patch cable used for?

Crossover patch leads are used for direct network connections, such as linking computer to computer or computer to router. The patch lead for crossover wiring will often have the word “crossover” on its shield.

What is a CAT 6a patch cable?

Cat6a is shorthand for Category 6 augmented. Cat6a cables can handle up to 10 Gbps speeds and are popularly used for local area network (LAN cabling). C2G offers Cat6a ethernet cables in snagless, shielded, HDbaseT designs, and a variety of colors.

Can I use straight through cable to connect two switches?

When hooking two new switches, or an old switch to a new switch, you can use either a straight or crossover cable and it will probably auto detect how to configure the port. If not, press the up-link button and connect the cable to the highest numbered port on that switch.

Can you connect two computers with a straight through cable?

Yes, If both of the Computers have NICs (Network Interface Cards) with Auto MDIX (Medium Dependent Interface Crossover) capability then Straight Cable can be used to connect similar network devices, i.e. A Computer to Another Computer instead of a Crossover Cable required.

What is straight through cable used for?

A straight through cable is a type of twisted pair cable that is used in local area networks to connect a computer to a network hub such as a router.

What is the standard cable used for almost all purposes?

Straight through Ethernet cables are the standard cable used for almost all purposes, and are often called ‘patch cables’.

What is the difference between RJ 11 & RJ 45 connectors?

RJ45 is mostly used with Ethernet cables while RJ11 is connecting to telephone units. RJ45 has 8 wires inside while Rj11 has 4 wires. RJ45 is bigger in size than RJ11. You cannot plug-in the RJ45 cable connector into an RJ11 jack/interface/port/slot, however, you can do the opposite.

What features in modern switches eliminate the need for crossover cables?

Auto-MDIX uses automatic line sensing in the ports called auto sensing. This feature eliminates the need for special crossover cable, separate MDI and MDIX ports, and switches requiring selection for particular devices.

What is the reasonable length of straight through or crossover cable to ensure that network can work well?

There is no ideal length of a cat 5 cable but the specification states that it should not be more than 100m (328 feet). The specification of 328 feet has to do entirely with collision detection in a CSMA/CD (Carrier Sense Multi Access / Collision Detection network.

Are both ends of an Ethernet cable the same?

Technically, you can have the wires in any order you want as long as both ends are wired the same. However, Ethernet cables have standards for the sequence of the wiring, known as T-568A and T-568B. The only difference between the two is that the orange and green pairs of wires are switched.

Can I play the same game on 2 switches?

Nintendo Switch lets two systems play the same game at the same time. … This will make the second console the account’s primary system. You can then log out of that account on the second Switch, and create a new profile. You can now play the same game on both systems at the same time.

Is it OK to daisy chain switches?

Daisy-chaining switches together is generally considered safe, but not recommended if at all possible. Doing so comes with some risks that can cause chaos on a network. If you absolutely have to daisy-chain switches together, the general rule of thumb is to not connect more than three switches with each other.

Do switches slow down network?

If your switch is not capable of gigabit and your internet service is faster than 100 Mbps, the switch will slow your connection. Non-gigabit switches would be fast Ethernet (aka. 10/100) with a maximum throughput of 100 Mbps. If your switch is gigabit capable, it will not likely slow your connection.

Why do some switches have 2 uplink ports?

Why do switches have lots of uplink ports and downlink ports? – Quora. With multiple uplinks to an adjacent switch, this concept provides aggerated bandwidth allowing more data to be transmitted diversely across multiple links.

How do I connect two switches to a uplink port?

You do this by one of two ways: 1) Use a “crossover” cable to connect a “Normal” port on one hub to a “Normal” port on the other. 2) Use a regular UTP (Unshielded Twisted Pair) cable to connect the “Uplink” port on one hub to a “Normal” port on the other.

What is a switch uplink used for?

The uplink port on switch is used to expand the network. Connect the uplink port on one switch, for example, to the standard port on another switch, by which normal copper ports can be saved to connect for more endpoints.

Which type of cable should be used when connecting between Cisco switches?

Straight-through cable is used for unlike devices: router to switch/hub, computer to Switch/hub. Cross-over cable is used for like devices: Switch to Switch, Router to Router, Computer to Computer Rolled cable is used for Configuring Router or Switches.

Can I plug a hub into a switch?

Yes. You can connect a hub or switch to any of the LAN ports toexpand your network. Generally you will connect a straight-throughcable from one of the LAN ports of the router to the uplink port ofyour hub and switch. If you do not have an uplink port, then use across-over cable.
