Do HID lights need a relay

Installation: A relay harness connects your HID lighting system directly to the car’s battery. … The main benefit of installing a relay harness is that it can help to provide a regulated flow of energy to your HID headlights.

Do HID bulbs need a resistor?

Necessity – One resistor is required for each turn signal bulb, license plate light bulb, etc.; as well as HID bulbs. (two per side if using hi/lo).

Why do my HID lights not turn on sometimes?

If one side sometimes doesn’t turn on it could be caused by a bad bulb, HID ballast, LED driver or wiring. … Swap the ignitors to opposing sides (not applicable for LED kits). If the problem is reversed, you might have a bad ignitor. This step will check if you have a bad ignitor.

Will HID lights work without ballast?

A ballast is essential in HID lighting technology because it provides the voltage to start the bulb and it also helps in maintaining an adequate flow of electrical current to the bulb. … Simply speaking, a ballast is essential if you want to enjoy the real strengths of HID bulbs.

What does a hid relay harness do?

A relay harness connects your HID lighting system directly to the car’s battery. This allows the lights to draw power from the battery rather than the rest of the vehicle’s system. The main benefit of installing a relay harness is that it can help to provide a regulated flow of energy to your HID headlights.

Which are brighter HID or LED?

Brightness: LED lights can have a brightness of 9,000-10,000 lumens while HID might have 8,000 lumens. Both, however, are brighter than traditional halogen lights. Technology: LED lights use electricity while HID uses gas (typically xenon).

Why do HID ballasts go bad?

In most cases, ballast failure occurs as a result of the surrounding environment. Heat and moisture are great enemies to your HID ballast. When it is too cold or too hot, the ballast can burn out or fail to start headlights. A combination of heat and constant condensation can also cause severe corrosion over time.

How do I reset my HID ballast?

Wait for the bulb to shut off and turn on the headlights. After turning off your headlight switch, turn it on again. The ballast was reset.

Is 35W or 55W HID better?

A bulb running 55W will usually last about half as long as a bulb running 35W. Brightness: 35W bulbs driven by a true 35W ballast will provide at least 3200 lumens. This is over double the brightness of a factory halogen bulb, and plenty of light for night-time driving.

How do I know if my HID ballast is bad?

Dimming or Flickering Headlights. If your HID bulb cannot produce its full brightness or strobe periodically, this is most probably a ballast problem. …
Strange Sounds. …
Headlights Not Working. …
Changing Light Colors. …
Constantly Blowing Fuse. …
Damaged Casing. …
Burn Marks. …
Water or Oil Damage.

Article first time published on

What is a relay wiring harness?

A Relay Wiring Harness utilizes a 30amp fuse protected power wire that directly connects to your positive terminal on the battery. An Automotive Relay is used to pull signal from a source (Headlight connector) that triggers power to be drawn from the battery.

What is a CANbus relay?

Logicon Canbus Smart 7-Way or 8-Way Bypass Relay The relay is designed to switch power directly from the vehicle’s battery/alternator, to the towed unit’s road lights using very small signals from the vehicle’s road lights without the vehicle’s bulb failure system being alerted. Features a built in buzzer.

Where is the headlight relay?

The headlight relay is typically located in the power distribution box in the engine compartment. Consult your owner’s manual if you need help finding the relay.

Can you change halogen headlights to HID?

HID and halogen lights are not interchangeable, as the lights require separate bulbs.

How long does it take to install HID lights?

It could take up to three hours for someone with little experience. The type of car can also tack on extra time. You’ll want to think about how old your vehicle is since some vehicles might need special ballasts in order to hold the HID headlights. Wire harness adapters might also be needed.

Why do HID lights flicker?

HID lights are high-output, low-resistance devices. To operate correctly, they require ballasts to control their current and voltage. If your vehicle is not designed for HID lights, the resistance of its electrical system may result in fluctuating power being sent to the lights, causing them to flicker.

How do you test a HID ballast with a multimeter?

To measure it, set your digital multimeter to around a thousand ohms resistance setting. Connect the black leads to the white ground wire on your ballast. Afterward, test every other wire with the red lead. When you do this test, a good ballast will return an “open-loop” or max resistance.

Why are my HID lights dim?

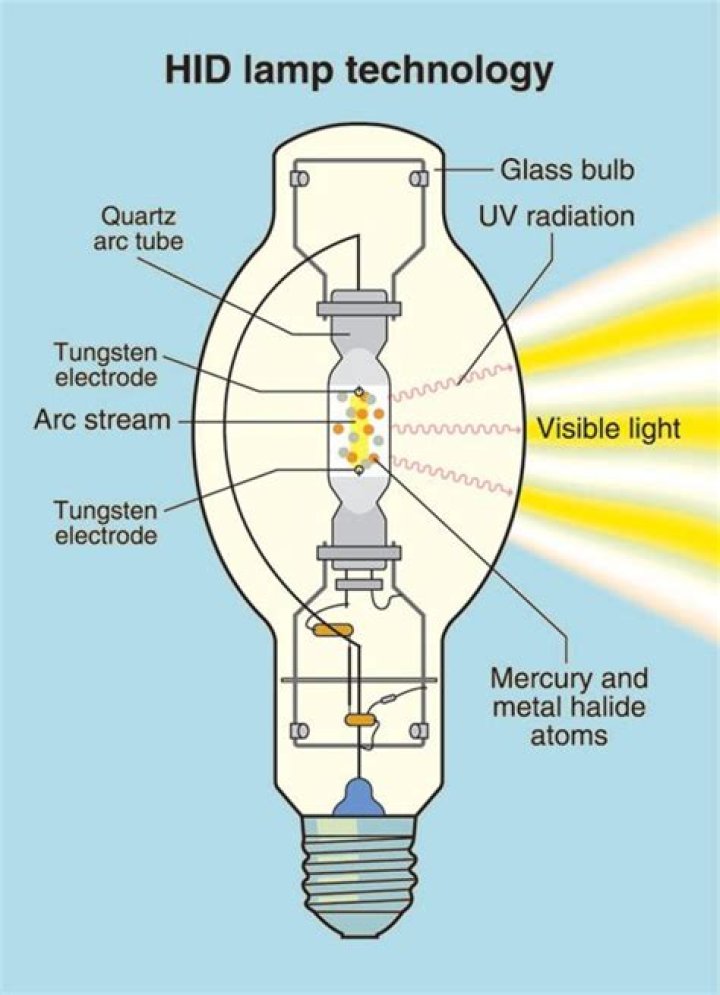

HID bulbs don’t dim over time like halogen bulbs simply because they don’t have a filament. HID bulbs produce an arc. As a filament deteriorates, it deposits a metallic film inside the bulb. That’s what reduces light output.

Are HID headlights illegal?

California permits only headlamp bulbs that emit white or yellow light. … Cars sold with HID lights installed are permitted because the manufacturers make sure the lights are low intensity, but aftermarket HID kits usually provide high intensity blue light and are illegal.

How many years do HID bulbs last?

An HID bulb should last anywhere from 2,000 to 3,000 hours. That’s up to six times longer than the shortest-lived halogen bulbs. With an HID bulb, you should get several years’ worth of use before the bulb needs to be replaced.

Do HID headlights dim over time?

The short answer is yes, they do. Both LED and Xenon HIDs will lose up to 70% of their original light output gradually over time. … For LED’s and HID’s, the degradation (dimming) of the light intensity is very slow and gradual, it’s like watching hair grow.

What color HID is the brightest?

The brightest HID color temperature is 5000K, emitting perfectly white light. 4300K and 6000K will be just as bright but will have a very light tint of yellow (4300K) or blue (6000K).

Will a 55 watt HID bulb work with a 35 watt ballast?

You can use 55w ballasts with standard 35w bulbs, but the life of the bulb will be shortened a bit, and their color will Wash Out a bit. Again, OEM applications use 35w ballasts, and when coupled with a high performance projector, you’ll really be putting plenty of light on the road even going that route.

How do you make HID lights brighter?

Upgrade your headlight bulbs to LED. LEDs (light-emitting diode) are the brightest headlight bulbs. …
Upgrade your headlight bulbs to HID. …
Clean your headlights with a headlight restoration kit. …
Retrofit your headlights & fog lights. …
Buy premium halogen bulbs.

What is a power relay harness anti flicker?

Relay’s will resolve flickering issues and/or lights not turning on in most cases. … The relay harness basically helps regulate the power and keep the lights on when turned to the “on” switch.

What is a HID decoder?

The HID Warning Canceller, also known as HID Error Message Canceller, HID Decoder and HID Anti Flicker Capacitor is required for vehicles that get a headlights “flickering” or “strobe effect” after installing an HID Conversion Kit. They also eliminate “Bulb Out” warnings or “Bulb Failure Warning”in your dash.

Can you reset a ballast?

The ballast can only be reset by turning the headlight switch off and then on again. However, allow a few minutes cooling time between attempts to allow the ballast to cool down. If you have to repeatedly reset the ballast that’s often a sign of a bad HID bulb.

Can you fix a ballast?

While simply swapping burned out bulbs in an existing ballast is deemed “ballast repair” by many – and can offer advantages in longevity and energy savings – sometimes this simple “fix” is not enough.

Are HID ballasts universal?

High Intensity Discharge HID conversion digital ballast are a simple, affordable way to replacement your defective ballast from standard halogens to cutting-edge xenon technology. This ballast is universal fit for all aftermarket HID light bulbs as below.

How do you know if it's the bulb or ballast?

One probe of the multimeter should touch the hot wire connections, while the other touches the neutral wire connections. If the ballast is good, an analog multimeter has a needle that will sweep to the right across the measuring scale. If the ballast is bad, then the needle won’t move.

Will a bad ballast burn out bulbs?

The ballast itself can go bad, which causes lights to flicker or even appear to be burnt out, when in fact they aren’t. They require maintenance and energy to power, on top of the power used to light the fluorescent bulb. They are a large part of the equation when using fluorescent lamps.
