Do drum brakes self adjust

If they get too far away from the drum (as the shoes wear down, for instance), the piston will require more fluid to travel that distance, and your brake pedal will sink closer to the floor when you apply the brakes. This is why most drum brakes have an automatic adjuster.

Will drum brakes adjust themselves?

A modicum of self-adjustment has been built into drum brake systems, but the catch is that this self-adjuster only works when the car is being driven in reverse on some vehicles and only when the parking brake is engaged in others. As the car is moving in reverse and you step on the brakes, the shoes expand.

Do drum brakes need to be adjusted?

Drum brakes usually need to be adjusted when the brake pedal has to be pressed down a lot before the brakes engage. Adjustments can be done only on brakes that are in good shape. … To confirm your brakes are in good working order before you adjust them, check your vehicle for symptoms of a bad or failing drum brake.

How do I know if my drum brakes are self adjusting?

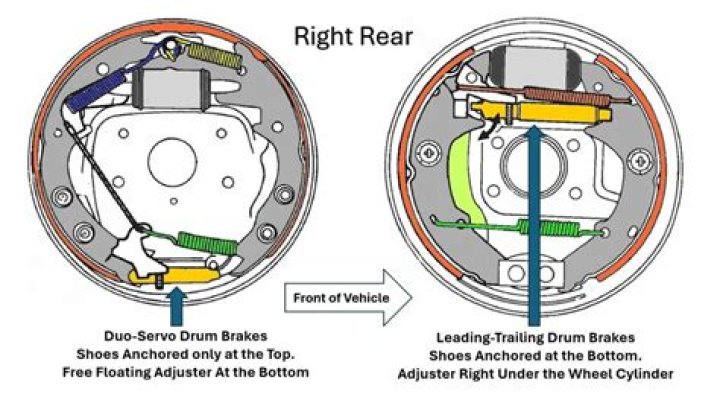

You can identify duo-servo drum brakes by the location of either the self-adjuster or anchor pin. Likewise, the location of the self-adjuster is at the bottom between the primary and secondary brake shoes. Likewise, the anchor pin is at the top between the two brake shoes.

Do brake shoes automatically adjust?

Automatic adjusters work from the handbrake or footbrake. Each time the brake is applied a lever turns a ratchet wheel and adjusts the brake shoes.

How do automatic adjusters work on drum brakes?

The adjuster uses an adjusting screw and notched wheel and lever in the same way as the Bendix/Wagner unit. A lever is attached to one of the shoes to adjust the notched wheel. … There is no pressure on the adjusting screw when the brakes are applied, allowing the lever to turn the notched wheel.

What does drum brake diagnosis start with?

One of the first symptoms of bad or failing drum brakes is unusual brake pedal feel. If the brake drums are worn excessively they can cause vibrations that may be felt in the pedal. Worn drums may also cause shuddering or pulsating that will become noticeable once you step on the pedal.

What happens if drum brakes are loose?

And the last common symptom is a loose parking brake. As the drum wears, the shoes may not squeeze against the drum’s insides as easily. Consequently, the parking brake won’t work as efficiently.

How often should you adjust drum brakes?

On average, a drum brake needs adjustment at every 10,000 miles or earlier until it needs replacement.

How do you tell if trailer brakes are self-adjusting?

An easy way to tell if you have self-adjusting units is to pull the hub/drum off the trailer spindle and check for an adjustable cable that would extend across the brake assembly (see attached picture).

Article first time published on

How do Chevy drum brakes self adjust?

Drum brakes have an adjusting lever attached to the brakes. It moves across an toothed adjusting screw, every time you step on the brakes. Once the shoes wear enough, that the lever moves far enough, it turns the screw.

When should rear drums be replaced?

The drums are only used when the brakes of a car are applied. The brake drums on your car are built to last for about 200,000 miles. In some cases, the drums will wear out sooner due to worn out internal components that put more strain on the drum.

Can rear brake drums cause vibration?

When the vehicle gets back on the road, the effect will be much like that of a vehicle with a warped brake rotor. … In this case, the brake rotor should be replaced. In vehicles with drum brakes, out-of-round drums can cause pedal pulsation and vibration when the brakes are applied.

Do self-adjusting brakes need to be adjusted?

They can adjust themselves going forward or backward. Keep in mind that even self-adjusting brakes require 1 initial adjustment. … Basically if the brake shoes have to move too far before they touch the drums a pulley spins the adjustment wheel which then takes and adjusts the shoes out a bit further.

Are electric brakes self-adjusting?

Are All Electric Trailer Brakes Self-Adjusting Trailer brakes can be either self-adjusting like the Dexter #23-468 or may require periodic manual adjustments like #23-27, depending on the particular model assemblies you have installed on the trailer.

Why do my rear drum brakes over adjust?

Drum brakes are adjusted to compensate for normal wear. … The brake shoe adjuster resets the distance between the drum and shoe during normal driving. If there is a problem with the adjuster, it can over adjust.

What is a self energizing brake?

Definition of self-energizing brake : a brake that contains within itself some means (as the wrapping action in a band brake) for augmenting the power imparted to it by the pressure on the brake pedal.

What is meant by self adjusting brake?

The brakes are adjusted on their own. Next. The disc brake is self-centering. Each time the brakes are applied, the caliper will move to the center from side to side.

How long do rear drum brake shoes last?

The housing of drum brakes is designed to be operable typically for around 150,000 to 200,000 miles, while the shoes are meant to last for 40,000 miles.

How many brake shoes are in a drum?

The nibs rest against the support pads of the backing plate to which the shoes are installed. Each brake assembly has two shoes, a primary and secondary. The primary shoe is located toward the front of the vehicle and has the lining positioned differently from the secondary shoe.

When should drum brakes be cleaned?

1. Do a preliminary dust-off. …
2. Pour a capful of brake cleaner onto the toothbrush, entirely saturating the bristles.
3. Brush off the brake pads with the moist brush. …
4. Clean the outer drums. …
5. Wipe down the drums with the rag.

What are self adjusters?

adjustment of oneself or itself, as to the environment. the process of resolving one’s problems or reactions to stress without outside intervention.

What is the difference of a drum brake from the disc brake?

There are also some applications that have discs in the front and drums in the rear. The primary difference between disc brakes and drum brakes is relatively straightforward. Disc brakes create friction with a disc-shaped rotor and a pair of brake pads, whereas drum brakes use a circular drum and brake shoes.

Can brake drums warp?

A brake drum that is out of shape could be causing shuddering or pulsation when you are braking. The drum will warp into an oval shape and doesn’t allow for optimal clearance between the drum and shoes. If this has happened to your brake drums you will need to replace them.

How do trailer brakes self-adjust?

Forward Self-Adjusting Brakes have a mechanism that automatically adjusts the brake shoes during every forward stop. A cable attached to the front brake shoe wraps around a pulley on the rear brake shoe.

Can you turn trailer brake drums?

Do Trailer Drums have to be Machined or Turned when Replacing Brake Assemblies. … Otherwise it is at the brake shop’s discretion. Drums do not have to be turned unless there is some kind of problem such as an uneven interior surface where the pads ride.
