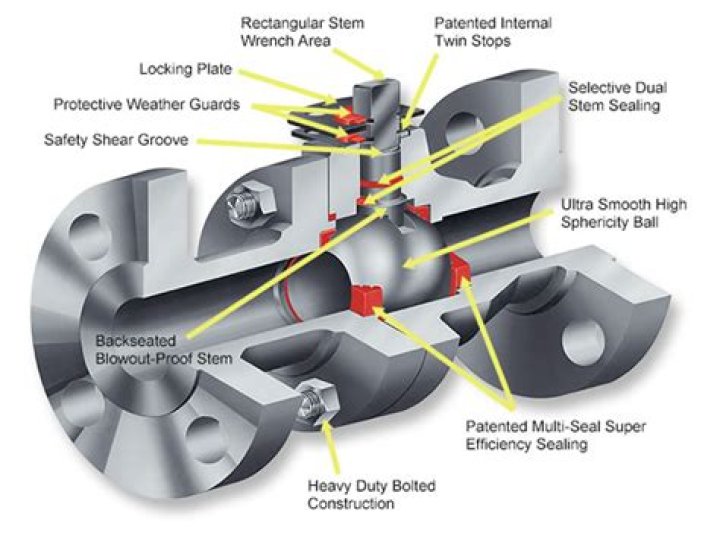

Do ball valves have seals

Ball valves are used in applications where tight shut-off is required. Ball valves are extremely versatile as they can handle pressures up to 1000 bars and temperatures up to 400 degrees. … Ball valves are popular in industrial use because of the air-tight seal they provide when fully closed.

Are ball valves airtight?

The ball valve is often a valve of choice in pipeline applications, as it is very reliable and provides an air-tight seal when it is turned off, as well as being quick and easy to operate. They are quite compact and generally require little maintenance.

What causes ball valves to leak?

Valves can leak for a variety of reasons, including: The valve is not fully closed (e.g., due to dirt, debris, or some other obstruction). The valve is damaged. Damage to either the seat or the seal can cause leakage.

How does a ball valve work?

A ball valve is a shut off valve that controls the flow of a liquid or gas by means of a rotary ball having a bore. By rotating the ball a quarter turn (90 degrees) around its axis, the medium can flow through or is blocked. … In special versions, ball valves are also used as a control valve.

How do you know if a ball valve is open or closed?

Ball valves are perhaps the easiest valve to see if they are open or closed. If the handle on top is parallel to the valve, it’s open. Likewise, if the handle is perpendicular to the top, the valve is closed.

What is difference between ball valve and globe valve?

The main difference between these two types is the way they close. A globe valve uses a plug (stem) that closes against the flow, and a ball valve has a gate (ball) that closes across the flow. Globe valves are good for regulating flow, whereas ball valves are better for on/off control without pressure drop.

What's the difference between a ball valve and a gate valve?

The main difference is in the operation. A gate valve moves a solid disk up and down to open/close the orifice. A ball valve rotates a ball (the orifice) with a bore in it 90 degrees to open/close the valve.

Does ball valve have flow direction?

Ball valves may be installed in vertical or horizontal pipe runs, they are bi-directional therefore flow direction is not critical, however the best practice is to set up the valve handle to point in the direction of flow whenever possible.

What is the difference between check valve and ball valve?

A ball check valve is a check valve in which the closing member, the movable part to block the flow, is a ball. In some ball check valves, the ball is spring-loaded to help keep it shut. For those designs without a spring, reverse flow is required to move the ball toward the seat and create a seal.

Can you throttle with a ball valve?

BALL VALVES Many people use them successfully for throttling clear water. Ball valves have low pressure drops, open and close quickly, are simple, and are trouble free. With the development of Teflon seals, ball valves have grown in popularity. Opening or closin a ball valve too quickly can cause fluid hammer.

Article first time published on

How do you seal a leaking ball valve?

Re-lock the packing gland evenly.
Increase packing material.
Replace old packing materials with new ones.
Replace the valve entirely.

Can a leaky ball valve be repaired?

The only repair for a ball valve is replacing the packing washer. If the actual ball on the valve becomes deteriorated, it will leak. In that case, the entire valve must be replaced.

How do you stop a leaking valve from leaking?

First shut off the water to the leaking water valve. Next remove the handle from the stem and then loosen and remove the packing nut. Remove the old washer and slide on the new one. Reinstall the packing nut, tighten lightly with a wrench (don’t over tighten at this or any other point) and reattach the handle.

Are ball valves shut off valves?

Ball valves, also called shut-off valves, tend to be increasingly found in newer homes. Ball valves use a handle to control the placement of a hollow, perforated sphere in the mechanism. When the handle is turned, the hole immediately opens or closes the water flow.

How do you turn off a ball valve?

Ball valves close by turning the straight handle a quarter turn clockwise until the water is off. To verify the water is off, turn on the hose bib next to the house valve. As you turn the house valve off, the water from the hose bib should stop.

Which way turns water off?

When it comes to which way you should turn the valve, keep in mind the old saying “righty tighty, lefty loosy.” In other words, turning a valve clockwise, or to the right, will restrict the flow of water while turning it counterclockwise, or to the left, will allow water to flow.

How do vented ball valves work?

When the valve is open, system fluids flow through the valve. The vent passage allows pressure inside the valve to remain equal to system pressure. When the valve is closed, the vent passage faces upstream, allowing pressure to equalize between the body and the upstream system.

Can I replace a gate valve with a ball valve?

If you already have a gate valve installed and have to replace it, you can certainly replace it with a ball valve. You will need a torch to heat up the parts and remove them. Turn the water off and drain it from the pipe and valve. You will want to open the valve as well.

When would you use a ball valve?

Ball valves are used in home plumbing, industrial applications, oil and gas applications, marine applications, pharmaceuticals, and many other fields. The primary disadvantage of the ball valve is the requirement of space. In tight applications, you may not have 90 degrees to turn the valve’s handle.

How long does a ball valve last?

A ball valve life expectancy is about eight to ten years. For such a simple mechanical device, the ball valve has enormous value to the gas and water industries.

Are globe valves expensive?

Globe valves generally seal better than gate valves and last longer. They are more expensive than similarly sized gate valves, but may be worth the extra expense in situations where throttling is needed.

Are globe valves directional?

The globe valve is used for throttling flow control. … This valve is considered uni-directional and must be installed with the pressure side or inlet under the seat.

Does globe valve reduce water pressure?

The handle can be opened all the way up, sealed closed, or partially opened to allow for throttled flow and reduced water pressure. In this capacity, they function similar to a kitchen faucet or outdoor hose bib. Globe valves can be used for isolation, like a ball valve or a gate valve.

Can you use a ball valve for hot water?

The ball valve is used as shut-off valves in the distribution of hot and cold water.

Are all ball valves the same?

Valve bore size is the size of the hole through the ball, the working part of a ball valve. The difference between a standard and a full bore ball valve is directly related to the size of the ball and its bore. Full port bore sizes are the same as the inner diameters of both the valve ports and the pipe used.

Are all ball valves bidirectional?

Most ball valves are bidirectional and feature two fixed or floating seats on the upstream and downstream sides of the valve. The double-seated ball valve creates a tight seal when closed with minimal pressure drop.

Can ball valve be installed vertically?

Ball valves can be installed in angle, vertical and horizontal position.

What does the arrow on a ball valve mean?

Pressure against the gate will help the valve seat properly. On the discharge side, the arrow on the knife gate valve is pointed against the direction of flow. When this valve is closed, pressure from the fluid in the pipe on the discharge side will allow the valve to properly seat and stop leakage.

Can I leave a ball valve half open?

If the valve is left partially open for an extended period under a high pressure drop across the ball, the soft seat may become damaged and may lock the ball in position. Ball valves are best suited for stopping and starting flow but may be used for moderate throttling.

What is the best valve for throttling flow?

Among the most common valves, the butterfly valve is the most suitable for throttling. A full quarter turn can open or close the valve. For throttling to happen, it only needs to open a bit for the media to pass.

Does partially closing a valve increase pressure?

Pushing fluid through an open valve requires a lower pressure drop than pushing the same fluid through a valve that is half closed. For a flowing system, closing an open valve half-way will reduce the flowrate, cause a higher pressure upstream of the valve, and a lower pressure after the valve.
