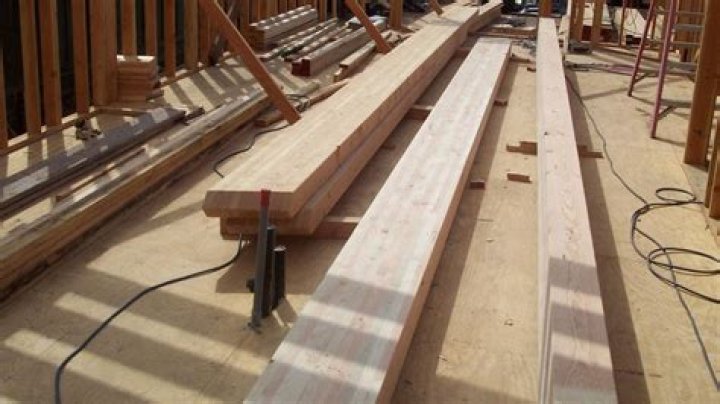

Can you drill glulam beams

As such, glulam beams are generally designed for and used in applications where they will be highly stressed under design loads. … Because of this, any drilling, dapping or notching that takes place in these outermost tension laminations has effects on the strength and serviceability of the beam.

Can you drill through engineered beams?

Engineered lumber of walls and rim joists. … The hole cannot be larger than one-third the depth of the joist, so the maximum hole size for a 2×12 joist (actual size 1-1/2 x 11-1/4 in.) is 3-3/4 in. diameter—plenty big enough for running cable! You can drill the holes anywhere along the length of the joist (first photo).

Can you drill LVL beam?

Laminated veneer lumber (LVL) and glue-laminated timber (glulam) products are used in applications where they will be highly stressed under design loads. Drilling or notching LVL and glulam must typically be avoided.

Can you cut a glulam beam?

Yes. You can cut or drill holes in glulam beams up to 2/3 of the depth! Glulam is engineered with specific laminations of varying strength and stiffness properties, so certain areas beam need to be protected.

Can you nail into a glulam beam?

Plus, it’s easy to connect other wood floor-framing components to glulam because the wood-to-wood connections can be made with standard carpentry tools and fasteners. Nailers are not needed as they are with steel beams, and nail-on joist hangers can easily be accommodated.

Where do you drill holes in engineered floor joists?

One notch may be cut anywhere except the middle of the length of the stud or column. Holes may be drilled anywhere along the length of the stud or column but must be at least 5″ from the edge.

Can you drill through engineered trusses?

A truss cannot be drilled without authorization of a licensed professional engineer or the truss manufacturer. ”Truss members shall not be cut, notched, drilled, spliced or otherwise altered in any way without the approval of a registered design professional,” according to the International Residential Code (IRC R802.

Are glulam beams expensive?

Glulam can also be more expensive than traditional lumber. When stained, it can look noticeably different than a solid piece of Timber and has a different aesthetic than solid beams.

Can I screw into a laminated beam?

Whenever possible, avoid drilling vertical holes through LVL beams unless the beam width is at least 3-1/2 inches. Prior to drilling any vertical holes, an engineer or architect qualified in wood design should be consulted.

Is glulam stronger than steel?

Pound for pound, glulam is stronger than steel and has greater strength and stiffness than comparably sized dimensional lumber. … Glulam is a stress-rated engineered wood beam composed of wood laminations, or “lams”, that are bonded together with durable, moisture-resistant adhesives.

Article first time published on

Can you drill through a load bearing beam?

NEVER drill a hole within 1′ of the end of any beam or a floor joist. You should also avoid drilling within 1′ of where a beam sits on top of a support column or post. 2. … Only drill within the 1/3 middle of the span horizontally and the 1/3 middle vertically.

Can LVL beams be notched?

Most LVL products are used as beams and headers loaded parallel to the gluelines. … Notching of LVL beams should be avoided whenever possible, especially on the tension side of a member. Tension-side notching of LVL beams is not recommended except at end bearings, and then only under specific conditions.

How strong is an LVL beam?

Due to its strength, an LVL beam can span up to 60 feet and is much stronger than traditional lumber. Generally, you can find LVL beams in 4-foot increments starting at 24 feet and going up to 44 feet long, with special orders up to 60 feet.

How much weight can a glulam beam hold?

The beams withstood a range of loads between 69,000 and 95,800 pounds. Thanks to the new Centennial Research Facility, FPL is one of the few locations worldwide that has the capacity to test such large wood specimens. As FPL engineer Doug Rammer explains, that capability is key to determining their strength.

How much does a glulam beam weigh?

Weight of Glulam (Glued Laminated Timber)5-1/2″0.17 lbs27.56-3/4″0.21 lbs33.758-3/4″0.27 lbs43.7510-3/4″0.34 lbs53.75

Is it OK to drill through roof trusses?

You should not drill, cut, or notch your attic trusses. These actions will significantly weaken your trusses. If you have to modify your trusses after the final design has already been approved, consult an engineer.

Can I drill into roof trusses?

The cutting, notching or drilling of trussed rafters is not generally permitted unless the Trussed Rafter Designer has allowed this for in the design.

Can you drill holes in roof joists?

For the engineered I-Joists shown in Fig 1 some of the limitations are: Do not notch or drill holes through the top or bottom flange. It is generally permissible to drill up to 38mm holes anywhere in the web.

Can you run pipes through floor joists?

Running Drain Lines through Joists In most cases, you can’t install a solid run of pipe, which means you must install short pipe segments and connect them in every joist space. Open-member floor trusses make running drainpipes simpler, but you cannot cut or notch any part of a truss.

Can you run water lines through floor joist?

The maximum allowable diameter of a hole in any solid-lumber joist is one-third of the joist’s depth. Notches can’t be deeper than one-sixth of the joist depth. … Although notches aren’t allowed in the center third of a joist’s length, you can drill holes anywhere along the length of the floor joist in that 5 1⁄4-in.

Can glulam beams exposed weather?

Guard against direct exposure of glulam members to severe conditions like high temperatures, rain, and other damaging weather conditions. Hot/dry and wet/winter climates can create high-risk environments, depending on how quickly the moisture content changes.

Can you drill through a PSL beam?

Depending on their location in the span, holes up to 2″ may be allowed in Microllam® LVL, Parallam® PSL and 1.3E TimberStrand® LSL, and holes up to 4 5/8″ may be allowed in 1.55E TimberStrand® LSL.

What are the disadvantages of glulam?

Quality. The second disadvantage of glulam timber is its quality. Glulam Timber is made by joining several timber pieces. If defective timber is used in the middle of the timber block during production, this malfunctioning timber can cause the entire timber block to deteriorate.

How much does a 20 foot glulam beam cost?

The LVL beam thickness is usually between 1.75 and 7 inches. The price for beams that fit 10 feet of space will range from $3 to $5 per linear foot, while a 20-feet span will need a beam that costs $6 to $11 per linear foot. Consult a local structural engineer to determine the best LVL beam size for your span.

Is a glulam beam stronger than wood?

Glulam has been shown to be as strong as steel, with greater strength and stability than similarly sized standard dimensional lumber. … As compared to solid sawn lumber posts, Glulam is a stress-rated engineered wood product composed of layers of bonded wood laminations running the length of the post.

How long can a glulam beam span?

In large open spaces, glulam beams can span more than 100 feet. One of the greatest advantages of glulam is that it can be manufactured in a wide range of shapes, sizes and configurations.

Is glulam the same as LVL?

LVL refers to a manufactured timber product made from thin veneers (often 3mm) glued together to form large structural members, often known as Hyspan or similiar. Glulam is made from thicker sections of timber, generally 15-45mm thick, glued together to form a large variety of products.

How thick is a glulam beam?

Glulam is made up of wood laminations, or “lams,” that are bonded together with adhesives. The grain of all laminations runs parallel with the length of the member. Individual lams typically are 1-3/8 inches thick for southern pine and 1-1/2 inches thick for Western species, although other thicknesses may also be used.

Can you drill into structural steel beam?

With which drill can I drill in steel beams? As mentioned above, you can use high-speed steel (HSS) drills. Typical drilling is with an twist drill, core drill or hole saw, in the tool steels HSS, HSS-Co 5 and tungsten carbide. Hole saws can also be used as they do not drill fully into the workpiece like core drills.

Can you cut a hole in a LVL?

As with all timber construction, a square hole should never be cut into an LVL beam. Square cuts develop stress concentrations and are prone to splitting. Round (drilled) holes are preferred because they allow stresses to develop “more smoothly” around the opening.

Can LVL be cut?

Although they are a manufactured product, cutting an LVL is no different from cutting a regular piece of lumber. Measure from the end of the beam to the place you want to make your cut and mark it with the carpenter’s pencil. … Move the saw along the cut line until you have cut completely through the beam.
