Can you bend PEX too much

One of the essential knowledge is understanding the limits of how far you can bend the PEX. Although you can slightly bend the PEX tubing to accommodate curves, it all comes down to knowing the PEX bend radius. Ensure that the radius is not six times tighter than the size of the tube.

How far can PEX be bent?

PEX tubing can be bent slightly to accommodate curves. But do not bend the tubing tighter than a radius that’s six times the size of the tube. For example, a 1/2-inch tube can have a three inch bend radius. All 90-degree turns should have bend supports.

How bendable is PEX pipe?

PEX is the most flexible plumbing pipe available. It can be bent around most corners without a coupling or fitting. For example, 3/8” pipe may be bent to a 4” radius and 1/2” pipe to a 5” radius. Most plumbing leaks and system failures occur at joints in fittings.

Is it better to bend PEX or elbow?

Use PEX bend supports instead of elbows. While these, unlike elbow fittings, cannot provide a sharp turn, they are suitable for most frame homes and will provide a certain degree of protection for the pipe from rigid/abrasive stud edges.

Why is PEX plumbing bad?

Potential chemical leaching is another downside of PEX piping. Due to its chemical composition, the PEX pipe material may leach toxic chemicals including bisphenol (BPA), MTBE, tertiary butyl alcohol (TBA), and others.

How much does PEX pipe bend?

PEX Bend Supports allow for 90° bends to be made with PEX tubing which can eliminate the need for additional fittings in certain instances, reducing the amount of potential leak points in a plumbing system. Bend supports also help to reduce noise and vibration.

Where is PEX not allowed?

PEX can’t be installed in high heat areas. You can’t install PEX in high heat areas like near recessed lighting. This also means you can’t connect PEX directly to a hot water heater, but you can use a connecting material to do this.

Can PEX make a 90 degree bend?

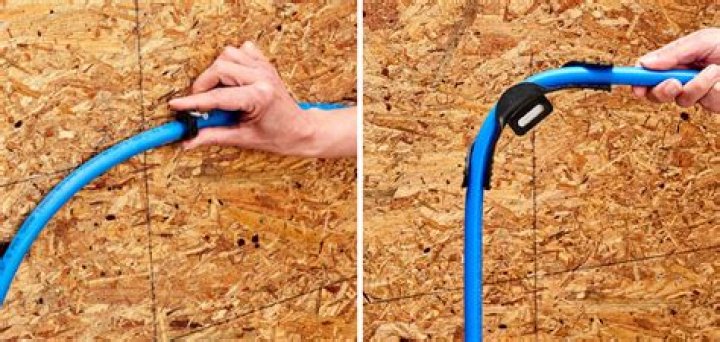

PEX Bend Support PEX bend supports are 1/4-turn metal or plastic devices that hold the PEX in place for a 90-degree turn. Some supports have nails that allow you to secure the support to the surface below. Bend supports generally bring the PEX to its tightest allowable 90-degree turn without folding or crimping.

Can PEX bend 180 degrees?

Bending radius Over-bending the PEX pipe, deforms its’ round shape, restricts flow and over-stresses the pipe. Note: minimum bending diameter only refers to the 90-degree and 180-degree (U-shaped) bends. Parallel runs of pipe can be spaced as close as necessary.

Will PEX elbows reduce flow?

The reality is that even PEX expansion fittings, which are sometimes referred to as “full-flow,” restrict flow rates. … At a rate of 8 feet per second, the CPVC fitting will cause less than 1% restriction in flow while PEX fittings create a 23% to 54% reduction in flow, depending on the fitting used.

Article first time published on

Does PEX freeze and bust?

Due to its flexibility (polymers), PEX has a small margin of expansion under the damaging pressure caused by ice formation. If the weather gets cold enough, PEX pipes can and will freeze – – like any plumbing. However, PEX may be less likely to rupture as a result of freezing.

What is the most flexible PEX pipe?

PEX-A is the most flexible of all PEX tubing types, has little or no coil memory and gives installer an ability to repair kinks with a heat gun.

Can mice chew through PEX pipe?

Mice and rats will chew through anything they can, including plastic, so PEX tubing is at just as much risk as the plastic-coated wiring in a car or an HVAC unit. While all rodent damage can be expensive, if rodents chew through a home’s PEX water pipes, the result can be disastrous.

Is PEX safe for drinking water 2021?

With a plumbing-pipe offering in sizes up to 3 inches, PEX is challenging traditional copper and CPVC materials for domestic water applications. … This provides confirmation the pipe does not leach harmful substances into drinking water and is safe for potable systems in healthcare facilities.

How long does PEX pipe last?

Additionally, long-term testing programs on PEX have shown that it has a potential lifespan of more than 100 years. So, while copper systems may have to be re-piped every few years or decades due to corrosion and pinhole leaks, a PEX system can last 10 times longer — or more.

Is it safe to drink water from PEX pipe?

The inner pipe for drinking water is made of a plastic called cross-linked polyethylene (PEX). … There are no health risks associated with drinking water from PEX pipes. A few types of PEX-pipe may cause prolonged undesirable taste and odour if the water remains in pipes over time.

Is PEX safe for drinking water 2020?

Final Thoughts. PEX was banned in California due to some concerns about toxic materials leaking through the pipe and into water. Through various national laboratory tests, PEX has proven to be completely safe and durable. It is now legal in California and even included in principal plumbing codes.

Can PEX go straight to water heater?

Can I Connect PEX to My Water Heater? PEX can’t be directly connected to a water heater. First extend a pipe 18 in. from your water heater and connect the PEX to the pipe.

Should I use copper or PEX?

PEX pipe is not only cheaper than copper but more durable too. PEX is immune to corrosion and mineral build-up, and it’s not affected by electrolysis, which can cause small pinhole leaks in copper piping. Copper pipes can last anywhere from six months to the life of a building.

How flexible is PEX B?

Flexibility – PEX-A is the most flexible, allowing for it to be fastened by cold expansion, which allows the end to be fluted prior to inserting the fitting. PEX B is not expandable and you should never expand the end of a PEX-B pipe. Kink-Resistance – PEX-A has the greatest resistance, PEX-B the lowest.

How strong are PEX connections?

“PEX-A products usually achieve an 85% crosslinking while PEX-B products average a 65-70%.” PEX-A is more resistant to the chemicals commonly found in plumbing and heating systems than what it has replaced, he adds, and long-term testing by Uponor, one of the manufacturers of PEX-A, is very encouraging.

How much psi can PEX?

PEX-a pipe can withstand a burst pressure of around 800 psi (almost two times the requirement for ASTM F876, the standard specification for PEX tubing). So neither the pipe nor the fittings are weak points, making for an extremely high-performing system in domestic water and hydronic piping applications.

What is the difference between PEX A and PEX B?

Again, the main distinction lies in the manufacturing method, which is what assigns an A, B or C to PEX. PEX A is made using the Peroxide, or Engel, method. PEX B is formed using Silane, or Moisture Cure, method. This is the most common PEX pipe type out there.

Can hot and cold PEX lines touch?

Hot and cold water lines should not be touched. Is this true? There are PEX hot and cold water lines that have been run through the frame and are touching each other in the picture above. It has passed the plumbing inspection and is ready to use.

How do you straighten PEX B pipe?

Attach a fitting to one end that can screw onto the hose bib on the water heater. Turn it up to max heat and roll out the tube out to the driveway. Turn on the hot water and let it run through it softening it and then let it cool all stretched out. It might work.

How do you straighten a push fit pipe?

To do this efficiently you will need a connection on the end which you can hook up to tap which runs hot water. Then lay the pipe out as flat as you can and start pumping the hot water through it. This should straighten it out quickly, running some cold water at the end just to make sure it stays straight.

What is expansion PEX?

PEX A uses an expansion-style fitting. … Using the expansion tool, you enlarge the pipe and sleeve in order slide in the fitting. Because PEX A is expandable, the material’s memory will ensure that it will shrink back to its normal size, tightening snugly around the fitting.

How thick is PEX tubing?

PEX Tubing Size InformationNominal IDODWall Thickness5/8″0.7500.0883/4″0.8750.0971″1.1250.125

Does PEX lose water pressure?

PEX plumbing systems don’t allow the water pressure to drop.

Do you lose water pressure going from copper to PEX?

You do not lose pressure or volume flow rate by using the larger ID.

Are brass PEX fittings better than plastic?

The basic fact is that plastic fittings is better and effective, unlike the brass PEX fitting. … Due to the problem earlier caused by polybutylene (PEX predecessors) plastic PEX fitting have been recommended. It is true that in areas where water is less acidic, brass fitting is better.
