Can you bend metal conduit

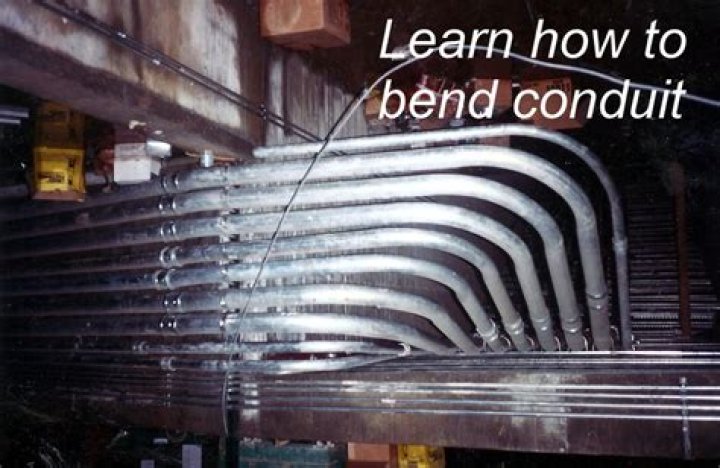

You can bend conduit to fit many angles and work it around corners, under or over ceilings, and past other permanent structures. The hardest part of bending conduit is getting the proper measurements and applying just the right amount of pressure to make a good bend.

How do you curve metal conduit?

Measure from the end of the conduit and make a mark at 7 inches to indicate the start of the bend. Slip the end of the conduit into the bender so the 7-inch mark is aligned with the arrow. This 7 inches, plus the “Stubs 5 to arrow” will give you the total horizontal run of 12 inches, including the bend.

Can rigid conduit be bent?

Rigid and IMC conduit are the hardest raceways to bend because they have a much thicker and harder wall. ½” and ¾” rigid or IMC can be bent by hand using a hickey (or segment bender). … Use an EMT bender to bend 30° kick in the PVC conduit by bending it to 60° and then the conduit will spring back to 30°.

What tool will bend metallic conduit?

A conduit bender is a tool that is designed to bend electrical pipes for installation.

What do you cut metal conduit with?

Heavy-duty steel pipe and tube cutters are usually the easiest to use, but for tight spaces, an angle grinder or reciprocating saw may be needed. When using a metal pipe cutter, align the tool around the marked place on the galvanized pipe and rotate so that the wheel cuts deeper into the pipe until severed.

What is the best conduit bending app?

Conduit Bender Elite™
QuickBend.
Electrical Conduit Bender – FREE (Android Only)
Master Bender Gold – iPhone.

What are the 4 types of EMT conduit bending tools?

The 4 most common bends to know how to make are the 90° Stub-Up, Back to Back, Offset and the 3 Point Saddle bends. It is common to use a combination of the bender markings when making certain tube profiles.

Can electrical conduit bend?

You can bend conduit to fit many angles and work it around corners, under or over ceilings, and past other permanent structures. The hardest part of bending conduit is getting the proper measurements and applying just the right amount of pressure to make a good bend.

Can you bend plastic conduit?

PVC pipe is commonly used as electrical conduit as well as irrigation piping. It’s rigid and strong, which doesn’t allow it to bend at all. … Use a hair dryer to heat up a spot on the PVC pipe and slowly apply pressure on the area you want to bend.

How many inches do you deduct for a 90 degree bend?

Bender SizeDeduct1/2″5″3/4″6″1″8″

Article first time published on

How many bends are allowed in conduit run?

National Electrical Code or NEC limits the total number of bends in one continuous run to 360 degrees or four 90 degree bends. It specifically states, “There shall not be more than the equivalent of four quarter bends (360 degrees total) between pull points, for example, conduit bodies and boxes.”

What is the requirement for the bending radius for steel conduit?

Great! Our conduit size should be large enough for a short pull. Next, we check the bending radius from the cable manufacturer, and find that they require a minimum bending radius of four times the O.D. of the cable: 4 x 0.59 in.

What are the different types of conduit bends?

There are three basic bends that are commonly used: the 90° bend, the common offset, and the saddle. A more advanced type of bend called a concentric bend is discussed in a separate article.

Can you cut metal conduit with a pipe cutter?

First, measure the conduit to the desired length and make a mark where it will be cut. … Cutting a conduit may be done with three common tools: a tubing cutter, an angle grinder or a hacksaw. A tubing cutter will produce the cleanest cut that is sure to be even and square.

What device cuts conduit for galvanized pipe?

A pipecutter is a type of tool used by plumbers to cut pipe. Besides producing a clean cut, the tool is often a faster, cleaner, and more convenient way of cutting pipe than using a hacksaw, although this depends on the metal of the pipe.

How do I bend conduit app?

iBend App– This app is perfect for electrical contractors that need to bend a large amount of conduit for projects. iBend ensures accurate conduit bends by calculating the math for you, saving you time. You can even customize the app to mimic the exact bender you are using.

Can you bend PVC conduit with a heat gun?

A heat gun is an easy tool to help you accomplish this. … Hold your heat gun at least a few inches away from the PVC as you heat it. Make sure to rotate the conduit so that you heat all sides evenly. Once the PVC has softened, put on a pair of thick leather gloves or wet heavy-duty gloves and carefully bend the conduit.

Can you heat PVC conduit to bend it?

You can bend PVC pipes by applying heat to the part where you want the bend to go. PVC is what scientists call an amorphous polymer, which means the particles that make up its structure are not arranged in fixed arrays. Applying heat to the PVC, therefore, softens it up and makes it easier to bend.

How do you bend a metal pipe without a pipe bender?

Block one end of the pipe with material, such as scrunched up newspaper or cloth. Then fill the pipe with sand—ensure that the sand is tightly compacted. Block the other end of the pipe and then heat the bend area. When it’s red hot, gently bend it by hand.

Does Home Depot bend conduit?

Unfortunately, Home Depot does not bend conduits in-store for customers. According to Home Depot, the most efficient and cost-effective way to bend a regular-sized conduit is by using a manual tube bender, which is available for sale in-store and online.
