Can termination resistance

A CAN Bus network must have a terminating resistor between CAN High and CAN Low for it to work correctly. … The resistance should ideally be less than 120 Ohms and closer to 60 Ohms if a resistor is fitted at each end of the bus.

Why termination resistor is used in CAN?

Terminal resistors are needed in CAN bus systems because CAN communication flows are two-way. The termination at each end absorbs the CAN signal energy, ensuring that this is not reflected from the cable ends. Such reflections would cause interference and potentially damaged signals.

CAN bus termination 120 ohm?

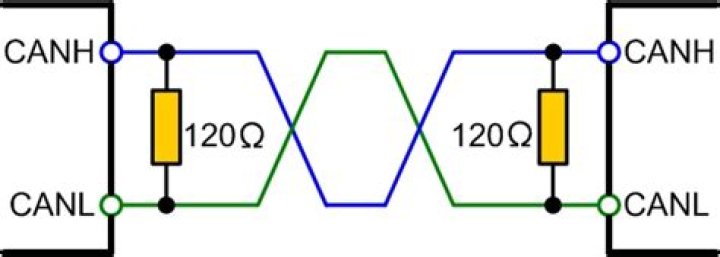

It is well known, in the CAN community at least, that every CAN and CAN FD network should be terminated with a 120 Ohm resistor at each end of the bus. … If your termination is correct, you should read approximately 60 Ohms (two 120 Ohm resistors in parallel produce a resistance of 60 Ohms).

CAN a terminating resistor go bad?

There should be a 120-ohm termination resistor located at each end of the bus to prevent signal reflections. … If one or more termination resistors are missing, communications may work temporarily but will be unreliable and eventually fail.

CAN bus high resistance?

In a high speed CAN-Bus (>100Kbit, used in automotive) only each end of the main loop should have a 120 Ohm resistor. Measure with a multi-meter the resistance between CAN-High and CAN-Low. … If there are 3 resistors in the wiring, you will measure 40 Ohms, and with 4 resistors you will measure 30 Ohms.

CAN termination resistor wattage?

Wattage Requirements for CAN-Bus Terminating Resistor with SN65HVD233. Eric R. … The calculations in the attached document indicate that the resistor needs to be at least a 7.5W resistor, which seems very large in comparison to the 0.25W value that is recommended in most CAN-bus applicaiton notes.

How can termination works?

A CAN bus termination (of 120 Ohm each) must be present at the two physical end points of the CAN network. The CAN network has to be connected from one node to the other with a bus termination for each of the two end points. A CAN network has no(!) ring topology and there should be no(!)

CAN communication error?

The majority of CANBUS communication problems are caused by poor wiring, incorrect termination, or the use of multiple frequencies on the same bus. … There must be exactly two (2) termination resistors of 120 ohms each at the physical ends of the CANBUS.

Can communication termination resistor?

A CAN Bus network must have a terminating resistor between CAN High and CAN Low for it to work correctly. … The resistance should ideally be less than 120 Ohms and closer to 60 Ohms if a resistor is fitted at each end of the bus.

Why can has 120 ohm termination resistor?

For avoiding reflection we use Transmission Line theory. For the High speed CAN bus the maximum length is 40m, with 1 Mbps speed and maximum of 30 nodes. So here by using 120 ohms resistor as terminating resistor we can avoid all the reflections easily without fail.

Article first time published on

What is termination resistance?

By definition, a termination resistor is a single resistor placed at the end of an electrical transmission line. In electronics, you’ll encounter termination resistors when you’re working with differential pair signals, such as the RS 485. … Furthermore, termination resistors are used to avoid signal reflections.

Why CAN is having 120 ohms at each end Mcq?

Why CAN is having 120 ohms at each end? Answer: To minimize the reflection reference, to reduce noise. To ensure that reflection does not cause communication failure, the transmission line must be terminated.

CAN bus with 60 ohm termination?

a single 60 ohm termination for lab testing when bus is only a few feet (probably not allowed, but it works). If you don’t have two 120-ohm resistors, you can accomplish the termination (on a small network) with a single 60 ohm resistor(120 in parallel with 120 is 60) or anything close 55-65 is fine.

CAN driver MCP2551?

The MCP2551 is a high-speed CAN, fault-tolerant device that serves as the interface between a CAN protocol controller and the physical bus. … It also provides a buffer between the CAN controller and the high-voltage spikes that can be generated on the CAN bus by outside sources (EMI, ESD, electrical transients, etc.).

CAN bus termination methods?

… are three methods to terminate the CAN bus such as standard termination, split termination and biased split termination.

CAN low and high resistance?

Line Resistance (Between CAN High and CAN Low) should read 60 ohms.

CAN network topologies?

A CAN bus topology is determined by the maximum allowed bus length, maximum length of unterminated drop lines connected to the main bus line and number of nodes. A CAN bus system uses a nominal bit rate fnbr (in bits per second) which is uniform throughout the network.

CAN wiring?

CAN bus uses two dedicated wires for communication. The wires are called CAN high and CAN low. When the CAN bus is in idle mode, both lines carry 2.5V. When data bits are being transmitted, the CAN high line goes to 3.75V and the CAN low drops to 1.25V, thereby generating a 2.5V differential between the lines.

What is a terminating resistor automotive?

Terminating resistors are used to prevent signal reflections, which can cause false signals. Every line has a characteristic impedance, and depending upon the frequency of the signal being sent and the length of the line, it may need to be terminated with a resistor to avoid problem reflections.

Can a shield be terminated?

If the shield is terminated at both ends, current can flow along the outside of the shield. … In either case the external shield current is coupled into the inner circuits via the surface transfer impedance, Zt. If the shield is terminated at only one end, the ground loop is broken.

CAN protocol pins?

Pin #Signal namesSignal Description1CAN_GNDGround2CAN_LDominant Low3CAN_SHLDShield, Optional4CAN_HDominant High

CAN bit stuffing error?

A Stuff Error occurs whenever 6 consecutive bits of equal value are detected on the bus. Whenever a transmitting device detects 5 consecutive bits of equal value, it automatically inserts a complemented bit into the transmitted bit stream. This stuff bit is detected and automatically removed by all receiving devices.

CAN error be active or passive?

A node starts out in Error Active mode. When any one of the two Error Counters raises above 127, the node will enter a state known as Error Passive and when the Transmit Error Counter raises above 255, the node will enter the Bus Off state. An Error Active node will transmit Active Error Flags when it detects errors.

CAN based network?

A Controller Area Network (CAN bus) is a robust vehicle bus standard designed to allow microcontrollers and devices to communicate with each other’s applications without a host computer.

Can signals terminate?

High-Speed/FD CAN Termination For high-speed/FD CAN, both ends of the pair of signal wires (CAN_H and CAN_L) must be terminated. This is because communication flows both ways on the CAN bus. CAN_L is pin 2 and CAN_H is pin 7 on the standard 9-pin D-SUB connector.

CAN bus termination adapter?

CAN Termination Adapter. The PCAN-Term adapter terminates a high-speed CAN bus (ISO 11898-2) at one end. It is used if a CAN node is connected without internal termination or no CAN node is connected.

Why is termination resistor needed in rs485?

120 ohm network termination resistors placed at the ends of an RS-485 twisted-pair communications line help to eliminate data pulse signal reflections that can corrupt the data on the line.

Where does the termination resistor go?

4 Answers. Termination resistors sit at one of two places: As close to the driver as possible (for source termination), or as close to the end of the trace as possible (for the kind of termination that you have).

What does re terminate mean?

Term. Main definition. Retermination. The process of disconnecting, then reconnecting a cable to a termination point (possibly moving the cable in the process).

What is video termination?

Termination in video is a terminology that refers to a resistor of a particular value (usually 75 Ohms in video) that is connected to both ends of a transmission cable. … Video termination results in a loss of picture quality.

CAN bus multiple terminations?

To avoid reflections on the CAN bus, two terminations of 120 Ω must be foreseen at each end of the CAN bus. Depending on the application, one termination of 60 Ω can also be sufficient. In this application only one resistor is used (for each CAN bus) of 60 Ω in the Network Connection Board (see also Figure 3).
