Can outlets be upside down

Have you ever wondered if you have upside down outlets? The electrical code allows outlets to be installed with the ground plug hole facing up, down or sideways. It’s up to you, there is no standard electric outlet orientation. So that means there really is no such thing as upside down outlets.

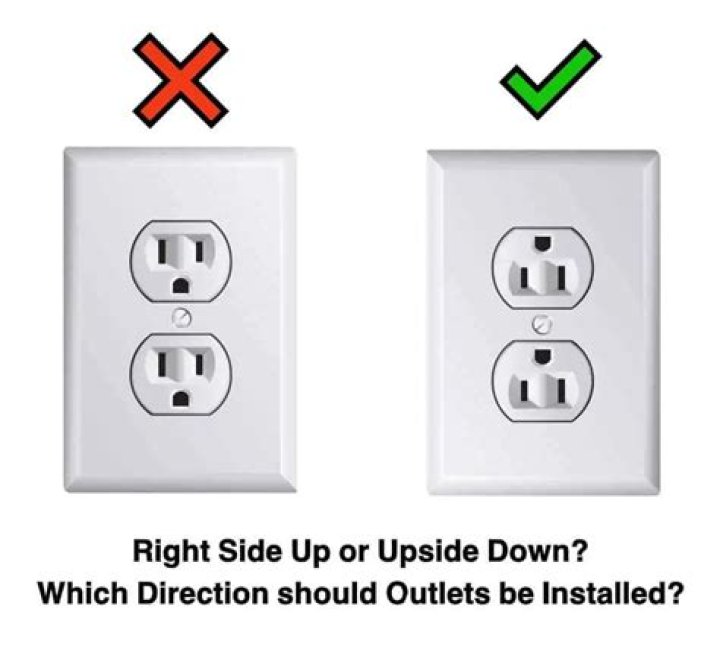

Should an outlet be installed ground down or up?

The outlet should be oriented with the ground pin up because this pin is longer and the plastic around the plug is meatier, so it will help to keep the plug inserted in the outlet. … Having the ground down will keep a person’s index finger from touching the live pins.

How do you flip an outlet?

Turn off power to the outlet at the breaker box. Use a voltage tester to make sure the power is off. Remove the faceplate and the screws holding the outlet in the junction box with the slotted screwdriver. Gently turn the outlet until it’s oriented properly.

Why do hospitals put their outlets upside down?

The newer 3-prong outlets are installed upside down in hospitals because a partially plugged-in right side up outlet may create chaos in case a fork or any other metallic tool falls down on the upper two terminals (Hot & Neutral) which leads to a short circuit and hazardous fire.

What is right side up for an outlet?

Installing an Electrical Outlet One of the first things people get confused about when trying to install an electrical outlet is which way is right side up! While it’s a topic heavily debated among electricians, the bottom line is, it doesn’t matter if you install the outlet with the ground hole up or down—technically.

Why are outlets red in hospitals?

The red outlets (sometimes referred to as sockets) in hospitals and medical facilities indicate that they are on emergency backup power. The bright red color helps nurses, doctors, and hospital staff quickly and clearly identify where to plug in critical equipment during an emergency situation.

How do you test to see if an outlet is grounded?

Insert one probe of the circuit tester into the small slot and the other probe into the large probe. If the circuit tester lights up, you have power to the outlet. Now place one probe in the small slot and the other probe into the “U” shaped ground hole. The indicator should light up if the outlet is grounded.

What is a switch controlled outlet?

A switched receptacle allows you to control one outlet with a switch while the other remains hot. … A receptacle can be split so a wall switch controls one of its outlets while the other is hot all the time.

What do blue outlets mean?

Blue outlets are self grounding outlets with alarms indication loss of ground protection.

Why do electric plugs have holes in the blades?

These bumps fit into the holes so that the outlet can grip the plug’s prongs more firmly. This detenting prevents the plug from slipping out of the socket due to the weight of the plug and cord. It also improves the contact between the plug and the outlet.

Article first time published on

How do you ground an outlet without a ground wire?

The ideal way to repair an ungrounded 3-prong outlet is to establish a continuous electrical path back to the main panel. If the outlet is installed in a metal box and that metal box has metal conduit wiring (BX cable) all the way back to the panel, then you can ground your outlet with just a little work.

Can a 2 prong outlet be grounded?

Two prong outlets are not grounded, which can leave you unprotected from stray currents and result in electrocution or a power surge through sensitive electronics, often destroying them in the process.

What does the green dot on a receptacle mean?

The green dots indicate that the UPS outlets and plug are certified as hospital-grade and may be used within patient-care vicinities.

What do orange plugs mean?

According to an information article by Scott Spyrka @spyrkaelectric.com, the orange outlets are isolated ground receptacles that can provide electricity directly from a grounding point, meaning they maintain power even if the circuit breaker is tripped or power is interrupted elsewhere.

Does hot wire go to brass or silver?

Outlet Terminals The brass terminals are for the hot wires, and the silver terminals are for the neutral wires. If there is only one hot wire and one neutral wire in the electrical box, the hot wire can connect to either brass terminal; the neutral can connect to either silver terminal.

What does GREY outlet mean?

Like blue and yellow wires, these are generally used for three-way and four-way switching. They are also used to carry power to outlets in 220-volt applications. Always assume that they are live. 5 – White and Gray. These are neutral wires.

What does a red triangle on an outlet mean?

The triangle is the official indication that the receptacle has an isolated ground. Isolated ground receptacles have special construction and wiring that help eliminate electromagnetic “noise” that can affect sensitive electronic equipment.

What does a yellow outlet mean?

Joe, from what you have described the outlet with yellow light indicates that it has tripped and turned itself off. Therefore the outlet needs to be reset. … Once this is done, the yellow light will go off, and the green light should light up, and the outlet will once again have power available for you to use.

How do I make my outlets hot?

What you need to do is create a parallel circuit. As always, turn off the circuit breaker for that switch before any changes! For the outlet to be a permanently on, non-switch circuit, you need to bypass the switch. As @JimmyFix-It has said, you need to tie the Red wire and the Black Wires (Live) together.

What does half-hot outlet mean?

A half-hot (or switched) outlet is a duplex outlet that has one half permanently “on” or ready to provide electricity while the other half can be turned off and on via an ordinary wall switch.

Can you put a GFCI outlet on a switch?

GFCIs receptacles cannot be switched, nor can they be split. Best bet is to use a GFCI breaker in the panel, then you can use regular receptacles that you can split and switch, and everything will be protected.

Why do plugs fall out of outlets?

Causes of loose electrical outlets Most commonly, the outlet’s connectors have been worn out from repeated use. This often occurs in older homes or with outlets you use repetitively over long periods of time (for instance, the outlet you use to charge your phone or other devices, or the one you plug your vacuum into).

What is the third prong on a plug called?

The third prong on an electrical cord is the ground plug. … Here’s why: A ground prong creates an emergency path for electricity to travel through if a short circuit or fault happens within the device.

Why do some plugs have 3 prongs?

When you plug in a three-pronged plug, that third prong is providing an alternate pathway for electricity in the event of a fault. If you cut the third prong off of a plug, you defeat the safety feature. Also, adapters were designed to use the cover screw to complete a ground circuit on some older plug designs.

Can I add a ground wire to an outlet?

Two-prong outlets have no ground wire, without which the risk of electrocution and appliance damage is substantial. Simply adding an outlet with an additional prong will give you added appliance access, but it will not give you the safety that grounding provides.

Are self grounding outlets safe?

Self-grounding electrical outlets are designed to protect you from electrical shock. Modern building codes require all outlets to be either self-grounded or ground-fault circuit interrupters. … The use of improper electrical outlets can lead to shock or even electrocution.

Do all outlets need to be grounded?

since 1962, U.S. electrical code has required all outlets to have a ground. … When an error or surge occurs with grounding, the energy travels through the ground wire to the electrical panel. There, it will trip the circuit breaker or blow a fuse, thereby shutting down the circuit before damage (hopefully) occurs.

What happens if you don't ground an outlet?

Ungrounded outlets increase the chance of: Electrical fire. Without the ground present, problems with your outlet may cause arcing, sparks, and electrical charge that can spawn fire along walls or on nearby furniture and fixtures. Health hazard.

Does a GFCI need a ground?

A GFCI does not require a ground wire to work the way it should. GFCI offers protection from electrocution by tripping power off in case of ground faults detected across the hot and neutral outlet slots. As mentioned above, GFCI is very important for protection against ground faults such as imbalances in the current.

Can you install a GFCI without a ground?

A GFCI without ground wire isn’t ideal, but it’s better than a 2-prong outlet. A GFCI outlet will work without a ground wire and it’s legal. If the outlet shorts out for any reason, it will still trip for safety, even without ground. …

Can any wire be used as a ground wire?

The main types of grounding wire most used includes bare copper and gauged copper wire. … As a base, the wire contained within acts as a ground. Contractors for outdoor applications prefer this type of copper wire, as it is protected from the elements. Another commonly used type of grounding wires is gauged copper wire.
