Can galvanized pipe repair

Cut galvanized pipe results in ends without threads, and there’s no good way to splice in a replacement or a T. To cut out a section of pipe, unscrew the resulting pieces from their respective fittings, and install a new section of non-galvanized pipe.

Can you fix a hole in a galvanized pipe?

To replace the damaged section of threaded galvanized water pipe, cut the damaged area using a reciprocal saw. … After doing this, clean the threads then apply thread compound. Make sure you have a female PEX fitting then screw this on and use a wrench to tighten it. Repeat this process for the other end.

Do compression fittings work on galvanized pipe?

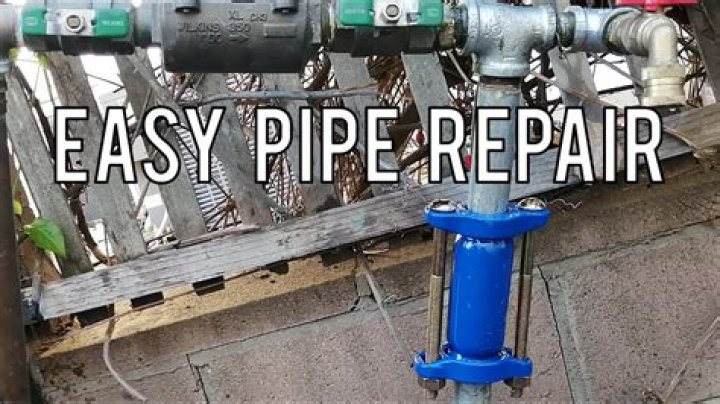

A Dresser coupling — made by the Dresser Company — is a compression coupling you can use to repair galvanized steel and other metal pipes. They can connect pipes with or without threads and are especially useful when threads have rusted and become unusable.

How do you fix a pinhole leak in a galvanized pipe?

Because pinhole leaks are small, the easiest repair method is to fill them with epoxy putty. The best tool for the job is an epoxy putty stick, which combines the resin and the hardener in a pre-measured format. To use an epoxy putty stick, you tear off the amount of putty required and knead it by hand.

How do you fix a hole in a metal pipe?

If the area is a large crack or fissure, plug the hole in the pipe with pipe bonding putty. Put on latex or plastic gloves. Take a small ball of the pipe bonding putty and press it between the palms of your hands to form a disc. Center the putty disc over the hole and lightly press it onto the pipe.

How much does it cost to replace a corroded pipe?

Corroded pipe repair costs $600 to $5,000. You’ll need to have all corrosion cut out and replaced. Typically, this means replacing the entire pipe. Corrosion often happens due to aggressive soil – acidic or resistive dirt.

How long does galvanized pipe last?

Galvanized pipes have an average lifespan that ranges between 40 and 50 years. However, pipes that are well-built, well-installed, and well-maintained can easily exceed the typical lifespan.

Is Cast Iron pipe still available?

Cast iron proved to be a beneficial material for the manufacture of water pipes and was used as a replacement for the original elm pipelines utilized earlier. … This type of pipe joint is still in use today, typically for above-ground pipelines in water treatment and manufacturing plants.

Can I use SharkBite fittings on galvanized pipe?

The SharkBite push to connect fittings are not designed to press on galvanized pipe. SharkBite makes a threaded to press fit transition adapter to fit your PEX to galvanized. If you want to rethread your galvanized pipe, you will need to square cut it.

How much does it cost to repair a pinhole leak in a water pipe?

RepairAverage costFixing a burst pipe$400 – $1,500Replacing a water main line$2,000 – $3,000 (or $500 – $1,000 if you just replace the problem area of the water main line)Unfreezing frozen pipes$200Repair a pinhole leak$150 – $240

Article first time published on

What can I use to seal a leaky pipe?

Use epoxy putty or pipe putty as a temporary fix to a leaky pipe. Pipe putty is designed to harden at room temperature and seal the hole or crack. Turn off the water supply line in the house.

Will SharkBite work on steel pipe?

SharkBite fittings are engineered to provide an extremely fast, secure and reliable method of joining Copper, PEX, Polybutylene and Carbon Steel pipework. All fittings are demountable and can be reused when required.

How do you connect galvanized pipes without threads?

Use a stainless steel coupling if the galvanized pipe is in a damp position to avoid problems associated with rust. Unthreaded galvanized pipe connects together using a coupling. Connecting together galvanized pipes that are non-threaded uses a coupling that creates a sealed joint.

How do you connect galvanized pipes without threads to PVC?

Connecting Galvanized and PVC Drain Pipes If you have to make a transition in the middle of a pipe, you can do it without re-threading the pipe. Simply cut the pipe with a hacksaw, making as straight a cut as possible, then fit a Fernco flexible connector with the appropriate diameter over the end and tighten it down.

Can you connect galvanized pipe to copper?

Galvanized pipes should not be connected directly to copper pipes, period. The only time one can successfully replace a section of galvanized pipe with a section of copper is to make use of a dielectric union to ensure the metals do not have direct contact. … Brass is an alloy of copper and nickel.

How do you cap a galvanized pipe without threads?

Use a plastic pipe cap to temporarily secure the galvanized pipe. For permanent capping, you’ve to solder the cap with the galvanized pipe. Solder the pipe and cap joint at 350 degrees celsius with super alloy-1. That was only the tip of the iceberg.

What are pipe connectors called?

Types of Pipe Fittings. Pipe fittings, also known as pipe connectors, attach one pipe to another in order to lengthen the run or change the flow direction in a plumbing system. These are used to combine, divert or reduce the flow of the water supply, and they come in a variety of sizes to fit the pipe they will connect …

How many different pipe threads are there?

Six Most Common Types of Threads NPT/NPTF. BSPP (BSP, parallel) BSPT (BSP, tapered) metric parallel.

What is the most common way to join galvanized pipe and fittings?

Joining galvanized iron fittings to galvanized steel pipe requires pipe dope or PTFE tape and two pipe wrenches. Start by liberally coating the threads of the pipe with pipe dope or wrapping the threads with PTFE tape. Make sure the pipe joint compound or tape go into the threads, to ensure a water tight connection.

How tight do you tighten galvanized pipe?

The galvanized will create corrosion problems in the future if you use it. If you are using all factory manufactured parts (fittings and pipe nipples) the general “rule of thumb” is to tighten the fittings until there are approx. three threads left exposed.

Can galvanized steel be repaired?

When it comes to repairing galvanized steel in the field, there is no limitation to the size that can be repaired. The zinc coating is difficult to damage, and field fabrication that requires removal of the coating should be minimized as much as possible.

Can you repair galvanized metal?

Touch-up and repair of galvanized steel is simple whether newly galvanized or in service for years. … ASTM A780 Practice for Repair of Damaged and Uncoated Areas of Hot-Dip Galvanized Coatings contains three acceptable methods of touch-up and details how to repair the damaged coating.

Does welding damage Galvanised steel?

Welding galvanized steel vaporizes the zinc near the arc (zinc boils before steel melts). The zinc oxidises in the air to a fine white powder. Prolonged breathing of these fumes can cause side effects which last about 24 hours.

Will flex seal work on cast iron pipe?

Many people have used Flex Seal liquid on cast iron pipes with great success just make sure it’s not under pressure. … Of course I couldn’t use the sink (while I was working on the pipe) for several days.

Does plumbers epoxy putty work?

It isn’t recommended by plumbers, and it doesn’t work for plastic pipes, but you can temporarily stop a water leak in a metal pipe with epoxy putty. At least two different brands on the market — JB Weld and Harvey’s Epoxy Putty — work equally well for the purposes of stopping leaks.

Can Cast Iron Pipe be patched?

Sometimes a small section of a pipe starts to crumble or a joint begins to leak even though most of the pipe is sound. If this is the case, you can easily make a repair. But if a cast-iron pipe is failing at several points, the most economical solution is to replace it with PVC pipe. This is a job for a professional.

Should old galvanized pipes be replaced?

Galvanized pipes can last up to 60 -70 years, put not always. Poor quality pipe or piping with poor galvanizing technique can fail in half the time, 30-40 years. If you are experiencing signs that your galvanized pipes are failing, it may be time to replace them.

How expensive is it to replace galvanized plumbing?

The cost to replace galvanized pipes is from $2,000 to $15,000 depending on if you use PEX, copper, or another material. Replacing galvanized pipes in older homes is important because of the way galvanized pipes tend to degrade over the years.

What should you replace galvanized pipes with?

Galvanized pipes are typically replaced with PEX, PVC-CPVC or copper pipes. Typically the new pipes will be installed first, the water supply transferred to the new system and then the old pipes will be drained and abandoned in place.

Is TFE paste the same as Teflon?

TFE/PTFE Paste or commonly labeled Teflon paste is very good. especially if you ever want to un-tighten. Teflon paste and Teflon tape are same/different as ice and water.

Do you use Teflon tape on metal fittings?

Don’t use Teflon tape, Teflon paste or pipe dope. … Teflon tape, Teflon paste and pipe dope is intended for metal pipe and fittings. Metal to metal fitting joints are more difficult to tighten than plastic; the surfaces tend to gall without the aid of such lubricants as Teflon or pipe dope.
