Can any switch be a 3-way

Three-way switches can be wired in a number of different ways, depending on where they are located relative to the light fixture in the circuit cable runs. For example, they can be arranged so that the feed cable runs to the first three-way switch, then to the light fixture box, then to the second three-way switch.

What kind of switch do I need for a 3-way switch?

Single point switching of a 120VAC supply needs only a single pole switch. For switching from either of two locations, use a pair of 3-way switches. For turning on or off a more powerful electrical device on a 240VAC supply, you’ll want to use a double pole switch.

Do I need special wire for a 3-way switch?

You will need two different types of 14 AWG wire, to wire your three way switch. … 14/2 wire has two power carrying conductors, a black, and a white, plus a bare ground wire. Similarly, 14/3 has a black, a white, and a bare ground wire, but includes an additional red conductor, hence the 3 in the name instead of the 2.

What is the difference between a 3-way switch and a regular switch?

The most common household switch, a single-pole, has two terminals and simply turns power on or off. A three-way switch has three terminals; a four-way has four. … You can usually replace any single-pole switch with a dimmer.

Can you wire a 3 way switch as a single pole?

In order for a 3-way switch to function as a single pole, the wires need to be connected to the common and one of the traveler terminals. It will not work if the wires are connected to the two traveler terminals. … 3-way switches can be converted to single pole in several configurations.

Why is it called a 3-way switch?

Circuits controlled by two (single pole, double throw) switches are called three-way by convention to distinguish them from circuits controlled by one (single pole, single throw) switch, which may be considered two-way (on, off). Clearly, three-way switches also arguably have only two functional states (on, off).

Is there a difference between a 2 way and 3 way light switch?

In a normal switch, the two terminals are either connected (as shown) or disconnected. When they are connected, the switch is “on.” In a three-way switch, the top terminal connects to one or the other of the bottom two terminals.

When should you use a 3 pole switch?

Three pole or three-way switches are used to control one or more lights or fixtures from multiple locations, such as the top and bottom of a flight of stairs. Single pole and three pole switches look the same when installed but are used for different purposes.

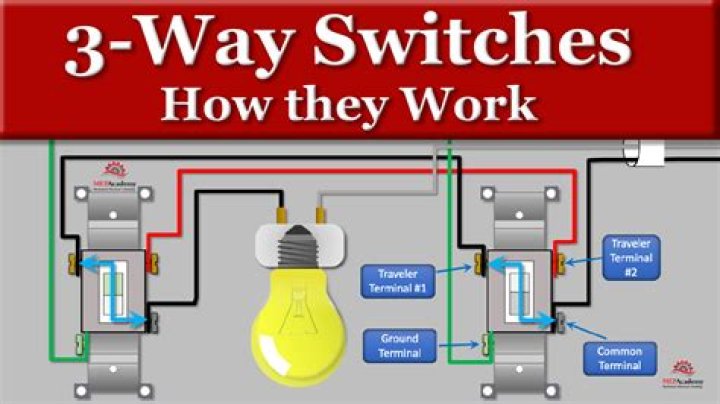

Which wire goes where on a 3-way switch?

Wiring for a 3-Way Switch The most important wire to get right is the one connected to each switch’s common screw terminal. This is the “hot” wire (usually colored black, but not always), and it brings the power from the source and delivers it to the first switch and then from the second switch to the light fixture.

Can you use 2 wire for a 3-way switch?

Two three-way switches (s.p.d.t.), four diodes, and two wires also enable three-way switching action. … If you only have a two-wire cable to work with, you can still hook up a three-way switching circuit for your garage, or hallway, to enable you to turn a light on and off from either of two different locations.

Article first time published on

What is the black screw on a 3-way switch?

The black screw has the black (common) wire that runs up to the light through the yellow cable. The two grounds are connected together and then to the green ground screw on the switch. To summarize, the black screw gets either the wire from the electrical panel or the wire going to the light.

Does the hot wire go on the top or bottom of a switch?

Is it on the top or bottom of the switch – Quora. If you are speaking of a single pole switch, doesn’t matter. On a 2 pole switch, box mounted, technically it doesn’t matter, but good practices are line at the top, load at the bottom. If a disconnect switch, always line at the top, load at the bottom.

Can I use a 3-way switch in place of a single pole switch?

Yes it can work. 3-way switches are spdt (single pole double throw) with 3 screw terminals, and regular switches are spst (single pole single throw) with 2 screw terminals. Just pick the correct two contacts and you are good to go. .

Can you eliminate a 3-way switch?

Remove the Three-Way Switch From the Circuit Start with the three-way switch that will be removed. Remove the switch cover plate screws with the slot screw driver, and then remove the two switch screws. Carefully pull out the switch, making sure not to touch or short any of the three wires.

Can I use a double pole switch as a single pole?

There are two different types of switches: the single pole and the double pole switch. … A double pole switch can be used to control light and a fan or 2 lights on separate circuits. It is easy to wire a double pole switch to work as a single pole switch because only one side is used instead of both.

Can you use a 4 way switch as a 3 way switch?

3 Answers. Sure, a 4-way is essentially two 3-ways in one device. Usually a 4 way switch has 2 (IN) screws and 2 (OUT) screws. Using one of the (IN) terminals is the same as the common terminal on a 3 way.

Do you need 2/3-way switches?

The key ingredient is a special type of switch called a “three-way” switch. You’ll need two of them, one to replace the existing switch and another for the new switch location. With these, you’ll have the convenience of turning a light on and off from two spots.

How many switches can be on a 3-way?

3-way switches are used to control lights with two switches. These switches do not have an on/off position like single pole switches.

What is another name for a 3-way switch?

Electrically, a typical “3-way” switch is a single pole, double throw (SPDT) switch. By correctly connecting two of these switches together, toggling either switch changes the state of the load from off to on, or vice versa.

What happens if you wire a light switch wrong?

If a light switch is wired up wrongly, a short circuit may takes place if you give phase and neutral to the switch terminals. Always connect neutral wire to the one terminal of the light and phase to the one terminal of the switch and off wire to the other terminal of the switch to the light other terminal.

What does the red wire do in a 3-way switch?

Red and blue wires link traveler terminals of both switches. The red wire, which is connected to the first switch’s common terminal, leads back to the fixture.

What is a 3-way switch UK?

The 3-way lighting circuit, which is often referred to as the two-way and intermediate lighting circuit, is a common arrangement usually found in large houses. If you are familiar with wiring a two way lighting circuit, then the addition of an extra switching point will not be much of a problem.

Do I need single or double pole switch?

Whilst a single pole socket is generally cheaper it is always preferred that customers/electricians install double pole sockets for safer isolation of the plugged in appliances.

Can I replace a 3 way switch with a smart switch?

You can use a standard 3-way switch for one of them, BUT there is a caveat. … This will ensure there is always a live connection to the smart switch. The standard 3-way is installed as the remote switch. Also, the smart 3-way switch must also be connected to the neutral.

Does a 3-way switch need 12/3 wire?

You cannot do it using only 2 conductor cable (12-2), unless you run two of the rather than a single cable. As shown in the diagrams and as described, you must have 3 wires between switches, and that means 12-3.

What is a dead end 3-way?

A ‘dead-end’ 3-way is one which only has one cable in the box…. the xx/3 from the other switch. The feed and switched circuit are both in the other box. Dead-ends are perfectly legal.
