Can a Wye lay on its side

Horizontal Drains Can Combine Through Wye Laying Flat, Or Can’t They? IPC TABLE 706.3 “fittings for change of direction” says wye is okay for horizontal to horizontal.

Can you use a wye for venting?

Absolutely! Most any fitting is perfectly acceptable and legal, just don’t use any reducers, caps or traps in the venting.

What is the difference between a sanitary tee and a vent tee?

A sanitary tee is a plumbing fixture that allows liquids to drain while also allowing the plumbing system to vent. The fitting resembles a normal tee fitting; the sanitary tee, however, when viewed from the side will have a definite downward sweep to the center inlet.

Can a wye be installed backwards?

the fitting wye cannot even on it’s back, by code be reversed.

What does a sanitary tee look like?

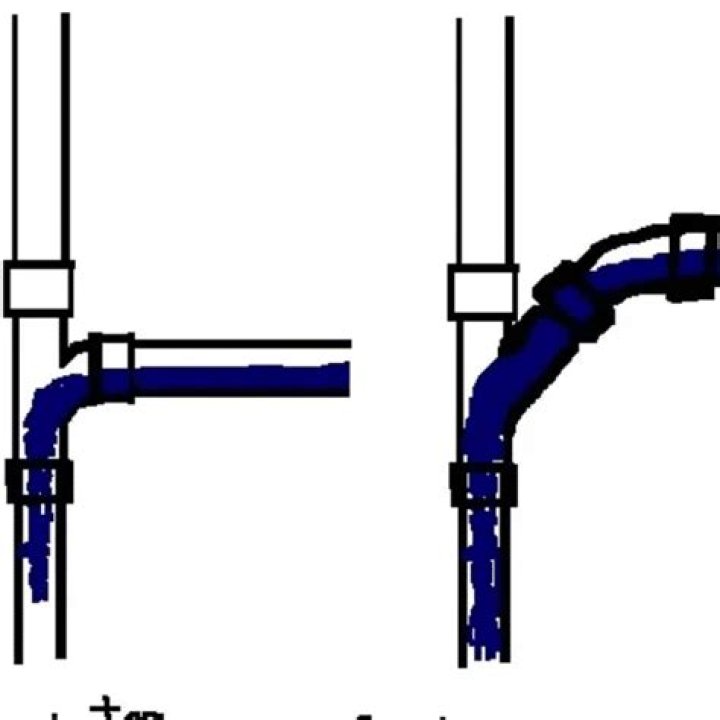

A sanitary tee is shaped like the letter ‘T’, while a Wye is similar to ‘Y’. Sanitary tee is used for horizontal to vertical transition, and Wye is used for combining 2 lines into one horizontal line to maintain a flow without causing clogging.

What is a double sanitary tee used for?

The double sanitary tee is generally used at the junction of two different pipes. Generally, the tee connects the two pipes with the vent. This helps to pass fumes and gases out of the system.

Where is sanitary tee used?

A sanitary tee should be used when connecting a horizontal run, such as a waste arm to a vent stack or vertical riser. “If you think it’s expensive to hire a professional to do the job, wait until you hire an amateur.”

What is a tapped tee?

In plumbing, a bell-end tee which has a branch that is tapped to receive a threaded pipe fitting or a threaded pipe.

How can we reduce sanitary tee?

Slip the new sanitary tee in place, glue it to the drain going down. The 1 1/2″ piece sticking out of the top should just about touch the 1 1/2″ piece coming down from upstairs. Pull the tape and slide the Fernco down over the stub of 1 1/2″ pip out the top of the sanitary tee.

What is a sanitary tee in a septic tank?

The purpose of the inlet sanitary tee is twofold: to direct flow from the house sewer downward into the tank to create a longer detention time for the sewage to allow settling of solids, and to keep the floating scum layer from plugging the inlet pipe.

Article first time published on

Can you stack sanitary tees?

You cannot use either one. You either stack two tees, which makes one drain lower than the other, or use the approved double fixture tee which is something about halfway between a cross and a double Y or double combination Y-1/8 bend, which is also illegal.

What is a sanitary Cross?

saznitary cross. A type of pipe cross used as a fitting for a soil pipe; designed with a slight curve in each of the 90° transitions so as to channel flow from branch lines toward the direction of the main flow.

Can two toilets share the same drain?

In answer to the question, yes, two toilets can share the same drain line but not the same drain hole.

How far from stack can the toilet be?

Tie the waste line from the new toilet directly into the stack if the toilet is within six feet of the stack and the waste line is 3 inches in diameter. If the waste line is 4 inches in diameter, the toilet can be as far as 10 feet from the stack.

What does DWV pipe mean?

Older homes built before 1960 used galvanized steel or cast-iron pipes for drain/waste/vent (DWV) systems. DWV systems remove wastewater and prevent the flow of sewer gases into homes.

What is coupling in plumbing?

In water and wastewater piping systems, pipe couplings are used to connect two or more sections of pipe with the aim of maintaining continuity between them. They can be used to join pipes of different or equal sizes, as well as connect more than just two pipes if they are cross or T-shaped.

What is a clean out plug?

A cleanout plug is a cap or lid used to close off a drain cleanout pipe. … Beneath the cover of these drains, there is a standard drainage pipe as well as a metal or plastic cap situated off to one side of the pipe. This cap covers the pipe cleanout, and prevents waste water from entering the cleanout.

Can a Fernco be used horizontally?

Under our code, we can use fernco’s where ever we feel, horizontal, vertical, diagonal, inverted, right side up, what ever you want to call it, we can use them there.

What is a closet 90?

A closet bend is a 90-degree toilet elbow fitting, but it doesn’t form a sharp angle. Instead, the closet bend has a gradual, sweeping corner that allows waste to flow through the bend without clogging.

How many toilets can be on a 3 inch drain?

There is one answer. The International Plumbing Code requires 5 Drainage Fixture Units in a bathroom group. It’s good for 20 DFU’s or 4 bathroom groups.

Can you tie shower drain into toilet drain?

Your shower drain can connect to the toilet drain, but it cannot connect to the toilet trap arm. This means that the shower connection will need to be made downstream from the toilet vent.

What is a street tee?

Pipe street tees are a type of run tee with two female threaded ends and one male threaded end.

What is a bull head tee?

A bullhead tee fitting is one of the most common fitting used in pipe and tube fitting. … They are a type of pipe tees in which the branch port is larger than the run ports. In bull head tee, the flow moves into the Tee via the “branch” pipe and the outlet is split between the two “run” connections.

How often should a septic tank be pumped?

Inspect and Pump Frequently The average household septic system should be inspected at least every three years by a septic service professional. Household septic tanks are typically pumped every three to five years.

How much does it cost to replace a baffle in a septic tank?

Septic Tank Outlet Baffle Repair Cost Repairing a baffle costs $300 to $900 on average. You may pay more if it’s tough to access. The baffle helps to prevent buildup in the incoming or outgoing pipes of the tank.

How do you unclog a septic tank outlet?

Sprinkle the drain with baking soda, then dump vinegar into the pipe. Leave the mixture to sit in the pipe for an hour or two. Finally, flush the drain with hot water. If the clog is small, this could be enough to clear the pipe.

What is a wet vent?

The official definition of a wet vent is a pipe that serves as a waste pipe and a vent at the same time. The wet vent also protects the drain’s trap for several fixtures, all connected to one system.

What is a Ty fitting?

Side inlet tee-wye (TY) This fitting (also known as a “bungalow fitting” or a “cottage fitting”) is a sanitary tee that allows two trap arms to be connected at the same level. A toilet is the main connection, with the option of a right or left-hand outlet to the 3″ inlet with a choice of 1-1/2″ or 2″ in size.

What is the color of the lettering and what letter in on the copper pipe for heating that we use?

These letter codes are also used in relating the color printed on a pipe to the type it represents. The color assists in identifying the type of copper pipe. Green represents type K, blue represents type L, red represents type M, and yellow represents type DWV.

How do macerator toilets work?

A macerating toilet is an upflush toilet system. It sends waste to a unit behind the toilet in a large container or in a container in the wall. High-powered blades liquefy the waste before it is pumped out of the unit through a pipe that is directly tied to the main drain line.

Can two toilets share one vent?

The waste lines can usually be tied into the same stack if the house has more than one toilet. They may need their own stack if they are on opposite sides. Two vent openings on the roof are needed since the stacks must be vented.
