Are TIG and GTAW the same

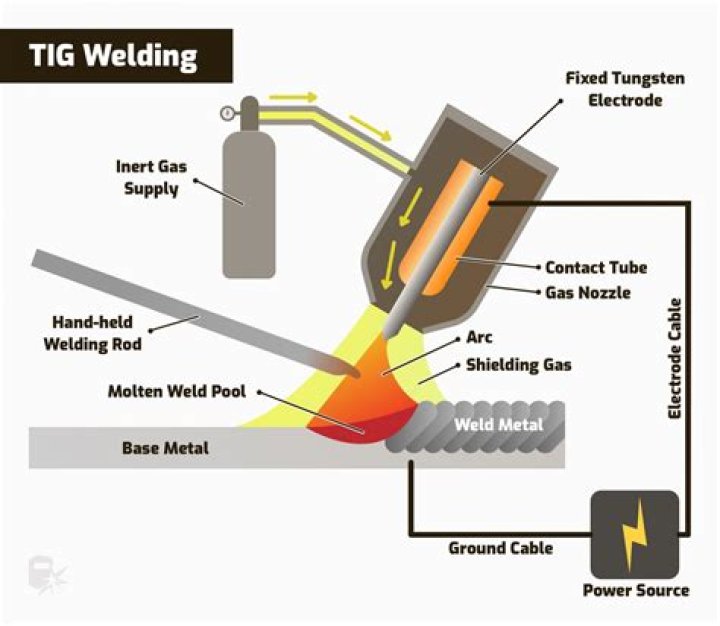

Tungsten Inert Gas (TIG) welding, also known as Gas Tungsten Arc Welding (GTAW) is an arc welding process that produces the weld with a non-consumable tungsten electrode.

Which is better arc or TIG welding?

Because tungsten has a high melting point above 6,000° F, the tungsten electrode is not consumed during welding. The result is that TIG welding tends to be highly controllable and produces a stable electric arc and a clean, precise, and strong weld. In contrast, in arc or stick welding, the electrode is consumable.

Is MIG welding GTAW?

“We use GTAW for various types of welding. … Moving on, MIG (Metal Inert Gas) welding, a.k.a GMAW (Gas Metal Arc Welding), a.k.a Wire Welding is a welding process in which an electric arc forms between a consumable MIG wire electrode and the workpiece, which heats the metal, causing them to melt and join.

What is TIG welding best used for?

The most important applications for TIG welding are pipeline and pipe welding. It is, however, used in many industries, such as aviation and aerospace and sheet metal industries when welding particularly thin materials and special materials such as titanium.

What is GTAW welding used for?

GTAW is most commonly used to weld thin sections of stainless steel and non-ferrous metals such as aluminum, magnesium, and copper alloys.

Can you TIG weld without gas?

Simply put, NO, you can’t Tig weld without Gas! Gas is required to protect both the Tungsten Electrode and the weld pool from Oxygen. Most Tig Welder torches are also cooled by the gas, so not using gas would risk burning out the Torch. … You might also find my article Can you use the same Gas for Mig and Tig useful.

What type of welding is GTAW?

Gas Tungsten Arc Welding: GTAW Gas tungsten arc welding (GTAW) is also known as TIG welding, which stands for tungsten inert gas. Just like in GMAW welding, an inert shielding gas is used.

What is a stronger weld MIG or arc?

The E70s6 bare wire used in MIG and 7018 ARC used in Arc welders are both equally strong. They have a 70,000 psi tensile strength, which is stronger than most steels that you will work with.

Which welding process is best?

Shielded Metal Arc Welding (Stick) is the most popular welding process. It is the most versatile and uses the simplest equipment. The small light electrode and holder can be used in very tight places or reach several hundred feet away from the welding power supply.

Is TIG stronger than MIG?

Bottom Line. TIG welding produces cleaner and more precise welds than MIG welding or other Arc welding methods, making it the strongest. That said, different welding jobs may require different methods, while TIG is generally stronger and higher in quality, you should use MIG or another method if the job calls for it.

Article first time published on

What are the disadvantages of TIG welding?

TIG is a time-consuming process – They are slower than any other welding process. …
More complicated – Highly skilled and professional workers are needed to perform TIG welding.
Safety issue – Welders, are exposed to high intensity of light which can cause eye damage.
High initial cost.

What metals can I weld with TIG?

1. Weld more metals and alloys than any other process. TIG welders can be used to weld steel, stainless steel, chromoly, aluminum, nickel alloys, magnesium, copper, brass, bronze, and even gold. TIG is a useful welding process for welding wagons, bike frames, lawn mowers, door handles, fenders, and more.

What is GTAW and SMAW welding?

Shielded metal arc welding (SMAW), gas metal arc welding (GMAW) and gas tungsten arc welding (GTAW) are three such arc welding processes—each of them offers certain advantages over others. … SMAW—Consumable electrode. GMAW—Consumable electrode. GTAW—Non-consumable electrode.

How is GMG different from TIG?

GMAW utilizes a consumable electrode. So electrode material melts down and deposits on weld bead. GTAW or TIG welding uses non-consumable electrode and thus electrode material is not deposited on weld bead. … GMAW process is much faster as electrode (or filler) is continuously fed by mechanized system.

What are the 3 types of welding?

Three of the most common are Arc, MIG (Metal, Inert Gas) or GMAW (Gas, Metal Arc Welding), and TIG (Tungsten Inert Gas) welding. In order to know which process is best for the particular job you’re working on, here’s what you should know about each of them. Arc welding is the oldest of these three welding processes.

What are two advantages of GTAW?

Versatility. It can be used to weld almost all metals.
Quality. It allows for a high degree of control and when done correctly yields excellent results.
Cleanness. GTAW does not create any spatter that must later be cleaned up.
Options.

What do you need for GTAW?

Tungsten electrode.
Welding machine (constant current-CC, AC, DC+, DC- or AC/DC). …
Torch or electrode holder.
Shielding gas supply (helium, argon or mixture): argon better for thinner metals due to lower heat requirement.
Filler metal rod.
Personal safety equipment including TIG welding gloves.

What polarity is used for GTAW?

Negative polarity is recommended for GTAW (TIG welding) because this prevents the tungsten electrode from overheating.

Why is GTAW a good process for welding piping and tubing?

For example, you can weld material down to 30 gauge with GTAW, which makes it a good process for computer housings, electronic components, and tubing. This is because the process allows for a more direct, or concentrated, arc and produces a narrow heat-affected zone (HAZ) on the base material.

How much is a bottle of argon?

This item 125 cu/ft 100% Argon Tank Welding Gas Cylinder CGA 580 – FULL40 cu/ft 75% Argon 25% CO2 Welding Gas Cylinder Tank CGA 580 – FULLAdd to CartAdd to CartCustomer Rating4.8 out of 5 stars (271)4.6 out of 5 stars (127)Price$36499$239.99$239.99Sold ByWeldfabulousWeldfabulous

How long does a tank of argon last?

Your flow rate is usually set from 10-20 cfh which on average if you had a 250 cf bottle would last for 10-20 hours of welding non stop. That would work out to about 2-4 days of serious welding.

Can I use CO2 for TIG welding?

Carbon dioxide (CO2) is actually an active gas. It causes oxidation, especially around tungsten (which is the electrode in a TIG welder). … So, in short, TIG welding needs pure argon to protect the tungsten electrode, and MIG welding works best on a 75%/25% argon/carbon dioxide mix to get good weld penetration and flow.

What is the easiest welding method?

MIG welding (metal inert gas welding) is often considered the easiest type of welding for a beginner to learn. MIG welders have a wire welding electrode on a spool which is then fed through a welding gun at a preselected speed.

What is the fastest welding process?

K-TIG is up to 100x faster than TIG/GTAW. K-TIG can weld 10- inch , Schedule 40 stainless steel pipe in just 3 minutes.

What is the most difficult welding process?

TIG welding is the hardest form of welding to learn for a variety of reasons. The process of TIG welding is slow and takes time to get used to as a beginner.

What is a stronger weld stick or MIG?

The E70s6 bare wire used in MIG and 7018 stick used in stick welders are both equally strong. They have a 70,000 psi tensile strength, which is stronger than most steels that you will work with.

Is stick welding better than MIG?

Stick welding is great for beginners because it’s easy to learn, and very affordable. … In contrast, MIG welding is faster and more efficient, and cleaner than stick welding. However, MIG machines are more complicated to set up and learn, and are also usually more expensive.

Is TIG welding cooler than MIG?

A MIG weld cools much faster than a TIG weld. That’s because the base metal surrounding it serves as a heat sink that quickly sucks the heat from the MIG joint. A TIG joint, on the other hand, cools relatively slowly because the base metal is already very hot—and that means no heat sink effect.

Is TIG welding harder than MIG welding?

Downside: TIG is much harder to learn than the other methods. … TIG welding is also significantly slower than either MIG or stick, and demands that the surface of the workpiece be absolutely immaculate.

Is TIG welding easy?

Gas tungsten arc welding (GTAW), or TIG, is often specified to meet strict aesthetic, structural or code/standard requirements. The TIG process is complex, and it is undisputedly the most difficult process to learn.

Do you push or pull when TIG welding?

With TIG welding, use argon gas whether joining stainless steel, aluminum or steel. While push and pull both work well for MIG welding, with TIG, always use the push method.
